RS274.5003.138.0.R RC45
Recommended:
Alternative Recommendation:
Material number RS27450031380RRC45

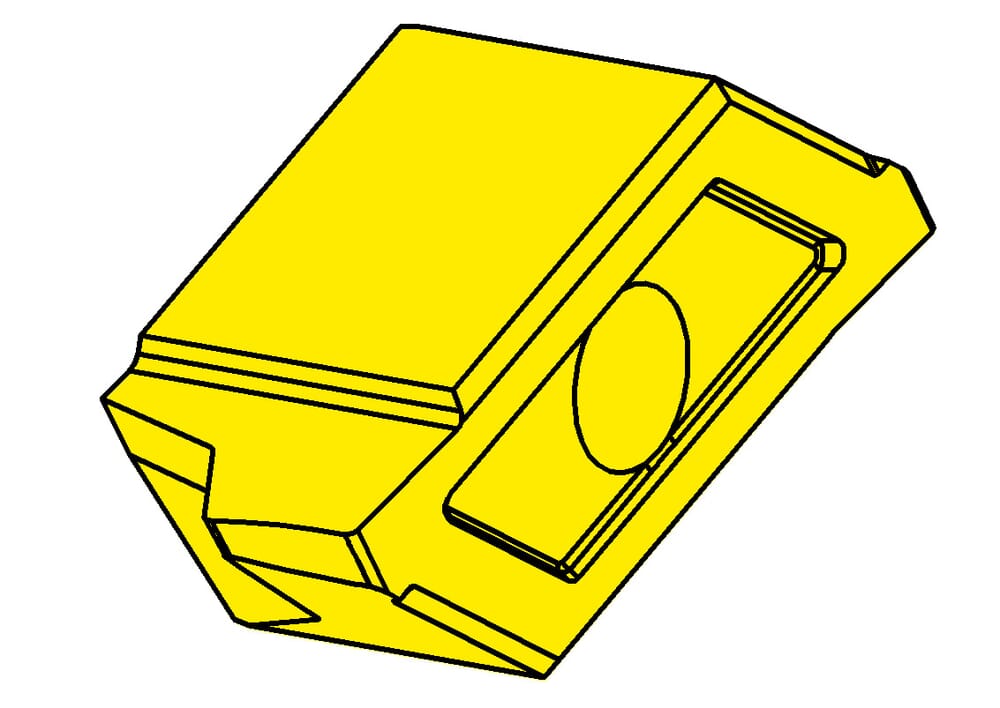

HORN Insert RS274.5003.138.0.R RC45 for Milling
tool-application
rotating
Cutting diameter (Ds)
2.48 ˝
63 mm
Maximum milling depth (tmax)
0.102 ˝
2.6 mm
Cutting insert height, Cutting insert thickness (s)
0.335 ˝
8.5 mm
Setting length (E1)
0.142 ˝
3.6 mm
| Downloads | |
|---|---|
| RS274_5003_138_0_R_RC45-DXF.DXF | Download |
| RS274_5003_138_0_R_RC45-ISO.XML | Download |
| RS274_5003_138_0_R_RC45-STP.STP | Download |
| RS274_5003_138_0_R_RC45-DIN.XML | Download |
| Download all files | |
