R105.1002.3.4.HF.P PD75
Material number R105100234HFPPD75

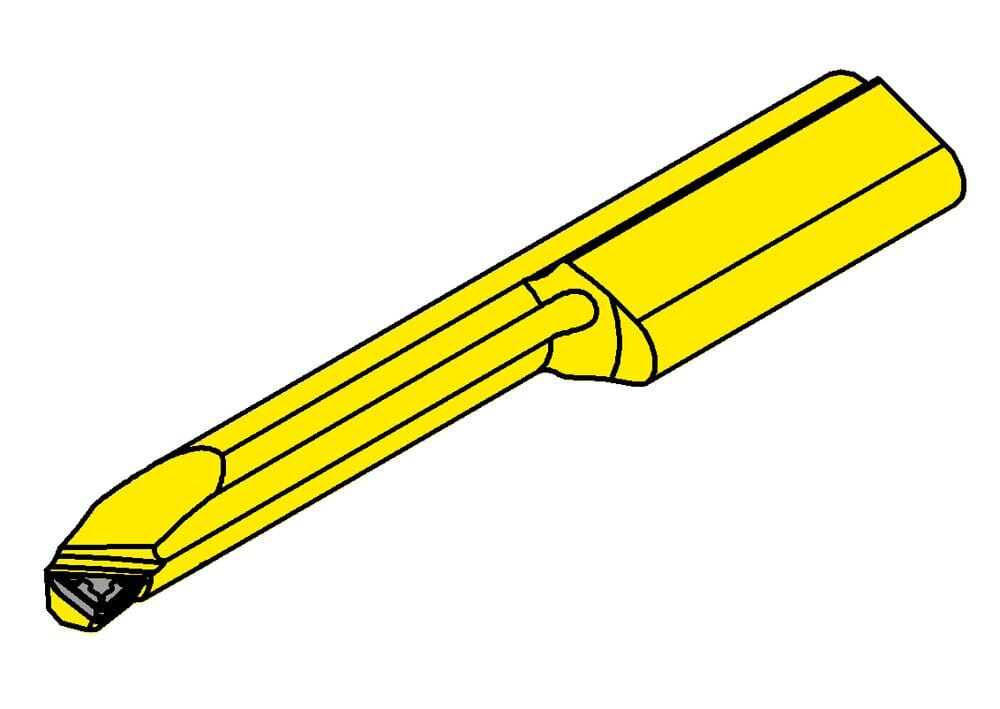

HORN Insert R105.1002.3.4.HF.P PD75 for Turning
Setting range radial (f)
0.075 ˝
1.9 mm
us-cutting
Yes
cutting
1
tool-application
static
machining-direction-sap
right
Smallest bore diameter (Dmin)
0.157 ˝
4 mm
Total length (l5)
1.378 ˝
35 mm
Neck diameter (d)
0.132 ˝
3.35 mm
Neck length (l2)
0.787 ˝
20 mm
Katalog_SSC
105124
Top radius (r)
0.008 ˝
0.2 mm
Width of blank (b)
0.252 ˝
6.4 mm
Maximum depth of groove (tmax)
0.006 ˝
0.15 mm
Head size (a)
0.146 ˝
3.7 mm
| Downloads | |
|---|---|
| R105_1002_3_4_HF_P_PD75-DXF.DXF | Download |
| R105_1002_3_4_HF_P_PD75-STP.STP | Download |
| R105_1002_3_4_HF_P_PD75-ISO.XML | Download |
| R105_1002_3_4_HF_P_PD75-DIN.XML | Download |
| Download all files | |
