DSK.MD.600.66.6 MD10
Material number DSKMD600666MD10

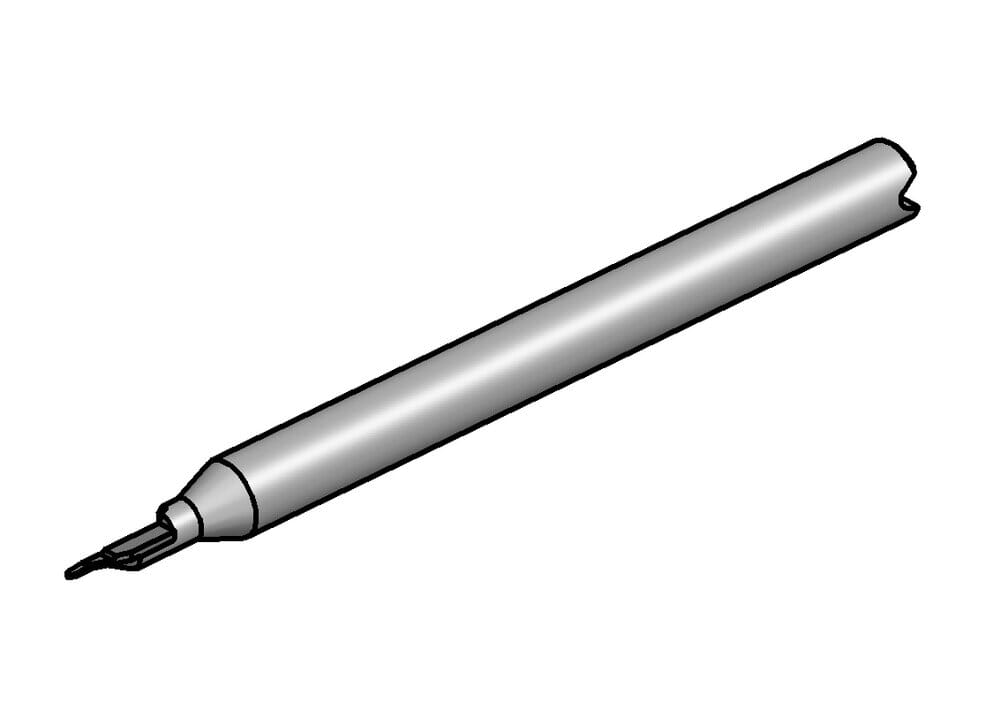

HORN Milling cutter shank MKD DSK.MD.600.66.6 MD10 for Milling
Total length (l1)
2.598 ˝
66 mm
us-cutting
Yes
cutting
1
tool-application
rotating
Maximum milling depth (tmax)
0.118 ˝
3 mm
Neck diameter (d3)
0.177 ˝
4.5 mm
Shank diameter (d2)
0.236 ˝
6 mm
Radius, full-radius (r)
0.118 ˝
3 mm
Cutting diameter (d1)
0.236 ˝
6 mm
| Downloads | |
|---|---|
| DSK_MD_600_66_6_MD10-DXF.DXF | Download |
| DSK_MD_600_66_6_MD10-STP.STP | Download |
| DSK_MD_600_66_6_MD10-ISO.XML | Download |
| DSK_MD_600_66_6_MD10-DIN.XML | Download |
| Download all files | |
