RH264.1616.23
Material number RH264161623

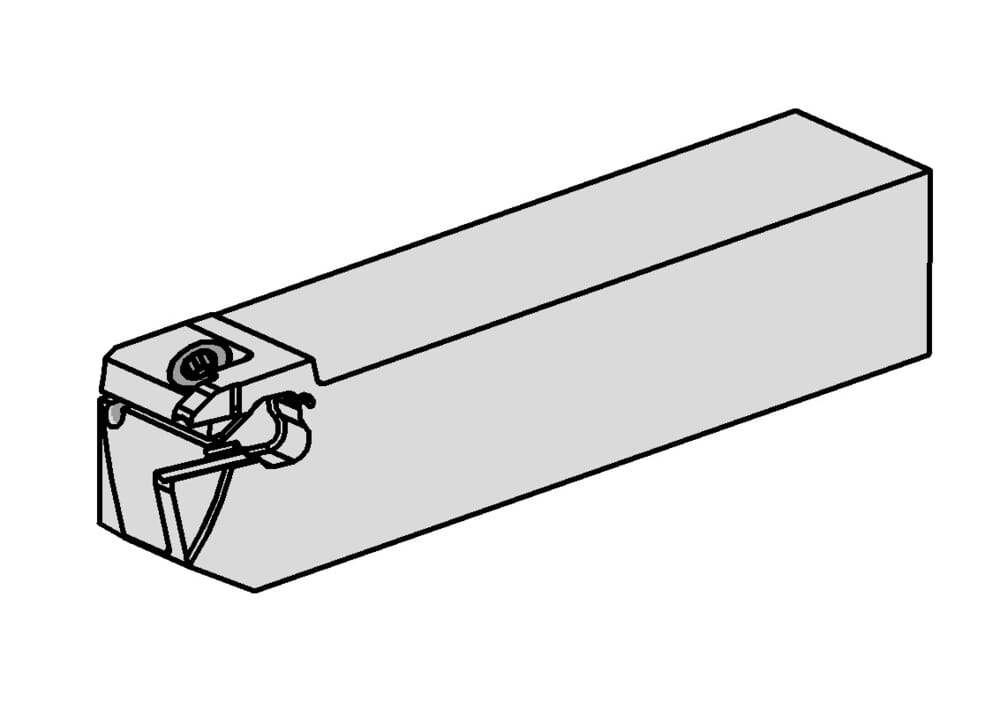

HORN Toolholders RH264.1616.23 for Turning
Peak height (h1)
0.63 ˝
16 mm
Head length top (including cutting edge) (l3)
0.984 ˝
25 mm
Katalog_CCTWS
26403
Maximum workpiece diameter (Dmax)
1.26 ˝
32 mm
machining-direction-sap
right
tool-application
static
cutting
0
us-cutting
No
Adjustment dimension (f)
0.63 ˝
16 mm
Adjustment dimension cutting center (f1)
0.581 ˝
14.75 mm
Total length (including cutting insert) (l1)
4.724 ˝
120 mm
Shank height (h)
0.63 ˝
16 mm
Head height (HK)
0.728 ˝
18.5 mm
length-overall-met
4.724 ˝
120 mm
Maximum insertion depth (tmax)
0.63 ˝
16 mm
Shank width (b)
0.63 ˝
16 mm
| Downloads | |
|---|---|
| RH264_1616_23.STP | Download |
| Download all files | |
