RH224.1616.S.6.03.IK
Material number RH2241616S603IK

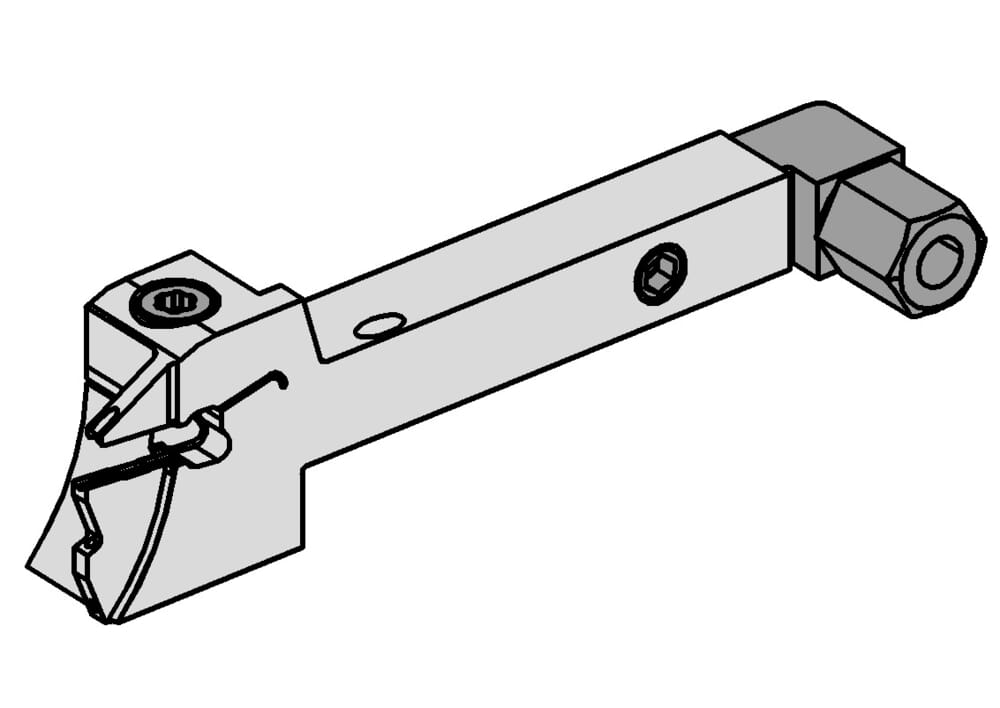

HORN Toolholder RH224.1616.S.6.03.IK for Turning
Katalog_CCTWS
224038
Width of groove (w)
0.118 ˝
3 mm
Head length (including cutting edge) (l2)
1.142 ˝
29 mm
machining-direction-sap
right
tool-application
static
us-cutting
No
Adjustment dimension cutting center (f1)
0.553 ˝
14.05 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Shank height (h)
0.63 ˝
16 mm
Head width (b1)
0.63 ˝
16 mm
Maximum depth of groove (tmax)
0.551 ˝
14 mm
Maximum workpiece diameter (Dmax)
2.362 ˝
60 mm
Peak height (h1)
0.984 ˝
25 mm
Shank width (b)
0.63 ˝
16 mm
