DSMA.300.050 MG3K
Recommended:
Material number DSMA300050MG3K

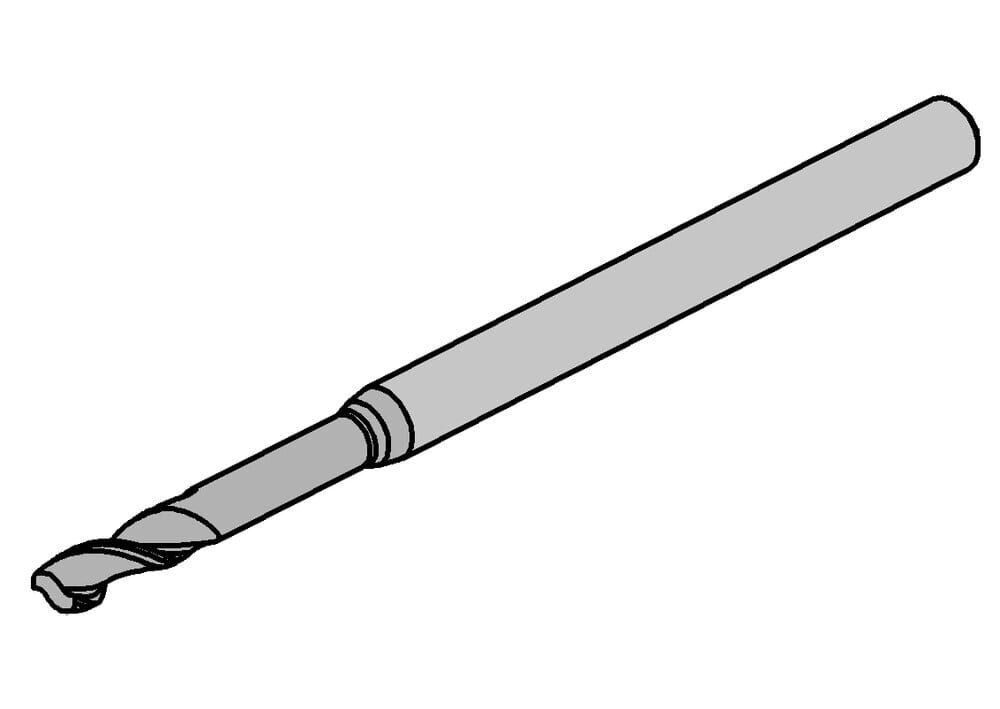

HORN DS toroidal cutter micro DSMA.300.050 MG3K for Milling
Total length (l1)
1.969 ˝
50 mm
tool-application
rotating
diameter-trans-angle-gamma-one-to-gamma-two-imp
0.138 ˝
3.5 mm
Effective cutting length (l2)
0.295 ˝
7.5 mm
Neck diameter (d3)
0.114 ˝
2.9 mm
Shank diameter (d2)
0.157 ˝
4 mm
Cutting diameter (d1)
0.118 ˝
3 mm
Neck length (l3)
0.591 ˝
15 mm
