M274.0063.A22.7.5.IK
Material number M2740063A2275IK

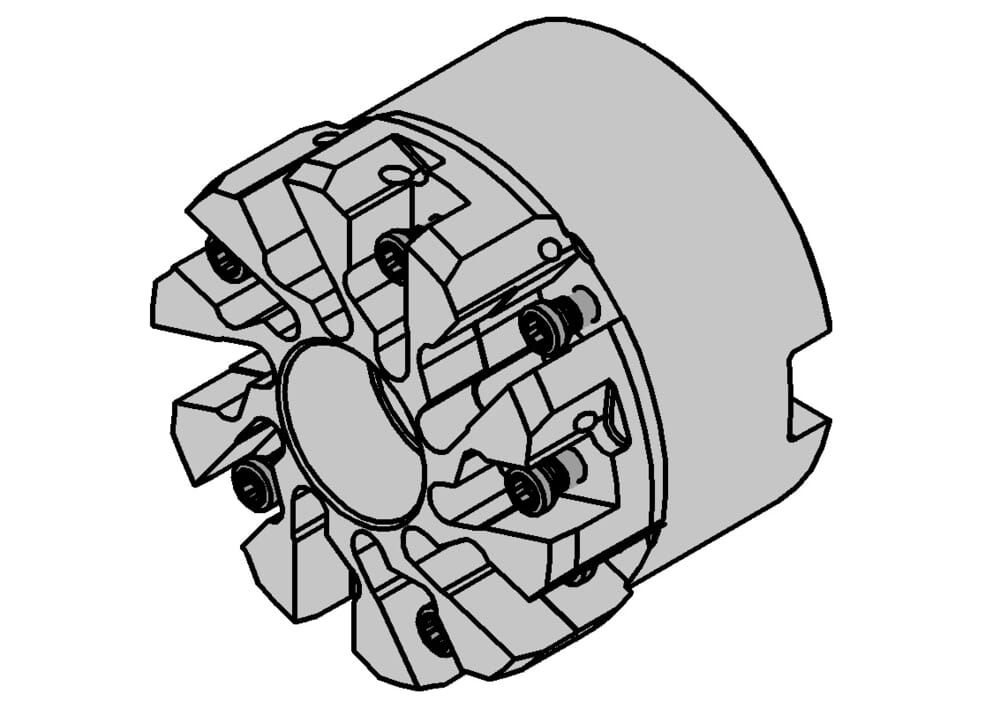

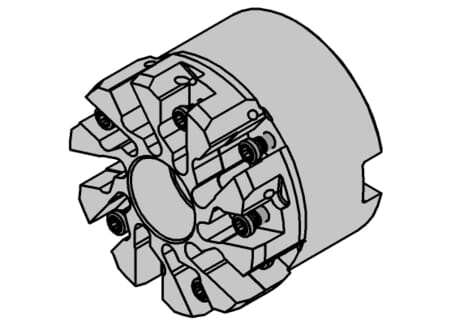

HORN Shell milling cutter M274.0063.A22.7.5.IK for Milling
Diameter of the mandrel (d2)
2.047 ˝
52 mm
us-cutting
No
cutting
0
tool-application
rotating
Cutting diameter (Ds)
2.48 ˝
63 mm
Mounting hole diameter (d3)
0.866 ˝
22 mm
Lowering for mounting screw head (d5)
0.866 ˝
22 mm
Miller length with indexable insert (h)
1.575 ˝
40 mm
| Downloads | |
|---|---|
| M274_0063_A22_7_5_IK-DXF.DXF | Download |
| M274_0063_A22_7_5_IK-ISO.XML | Download |
| M274_0063_A22_7_5_IK-STP.STP | Download |
| M274_0063_A22_7_5_IK-DIN.XML | Download |
| Download all files | |
