CCGT060202NWHN_PICTO.TIF

CCGT09T304N.W.HS PD70

GEOMETRIE_HS.EPS WERKSTOFF_N.EPS INNEN_BOHRUNG_AUSDREHEN.EPS PLANDREHEN.EPS PKD.EPS AUSSEN_LAENGSDREHEN.EPS

Material number CCGT09T304NWHSPD70

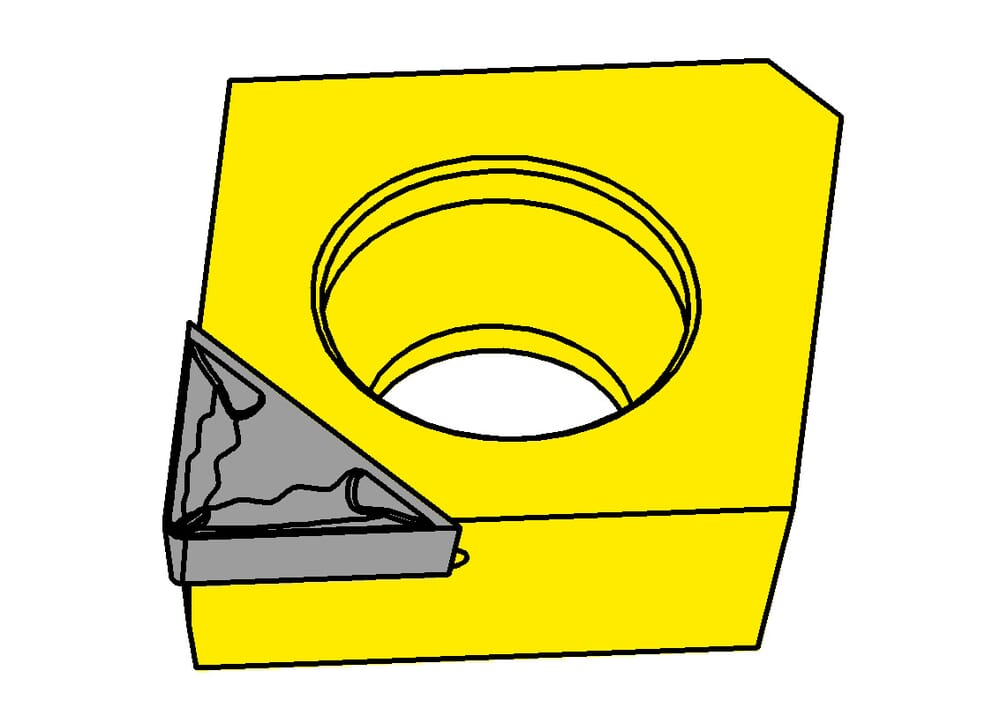

HORN Inserts CCGT09T304N.W.HS PD70 for Turning

Cutting data and technical instructions

Cutting insert height, Cutting insert thickness (s)
0.156 ˝
3.97 mm
tool-application
static
Inner circle diameter (d)
0.375 ˝
9.525 mm
Effective cutting length (l1)
0.138 ˝
3.5 mm
Bore diameter (d2)
0.173 ˝
4.4 mm
Corner radius (r)
0.016 ˝
0.4 mm
