S117.0012.02.00 MG12
Recommended:
Material number S11700120200MG12

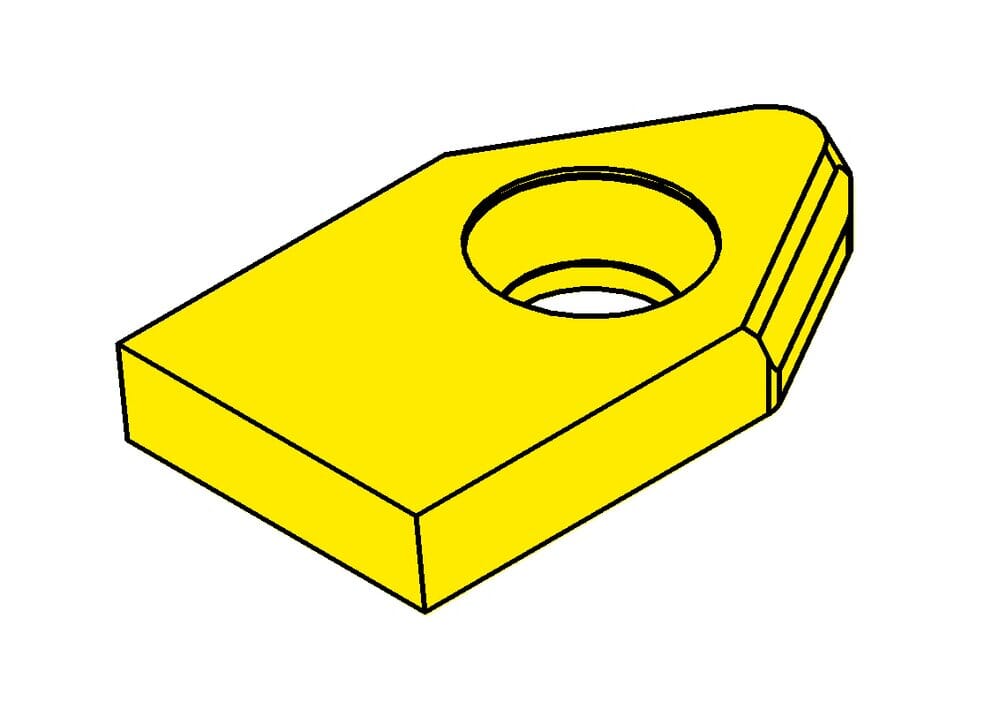

HORN Insert S117.0012.02.00 MG12 for Turning
Total length (l)
0.787 ˝
20 mm
us-cutting
Yes
tool-application
static
Insertion angle (α)
0 °
Maximum depth of groove (tmax)
0.295 ˝
7.5 mm
Cutting insert height, Cutting insert thickness (E)
0.177 ˝
4.5 mm
Width of groove (mm) (w)
0.472 ˝
12 mm
Katalog_SSC
1171200
| Downloads | |
|---|---|
| S117_0012_02_00_MG12-DXF.DXF | Download |
| S117_0012_02_00_MG12-STP.STP | Download |
| S117_0012_02_00_MG12-ISO.XML | Download |
| S117_0012_02_00_MG12-DIN.XML | Download |
| Download all files | |
