B114.0012.01
Material number B114001201

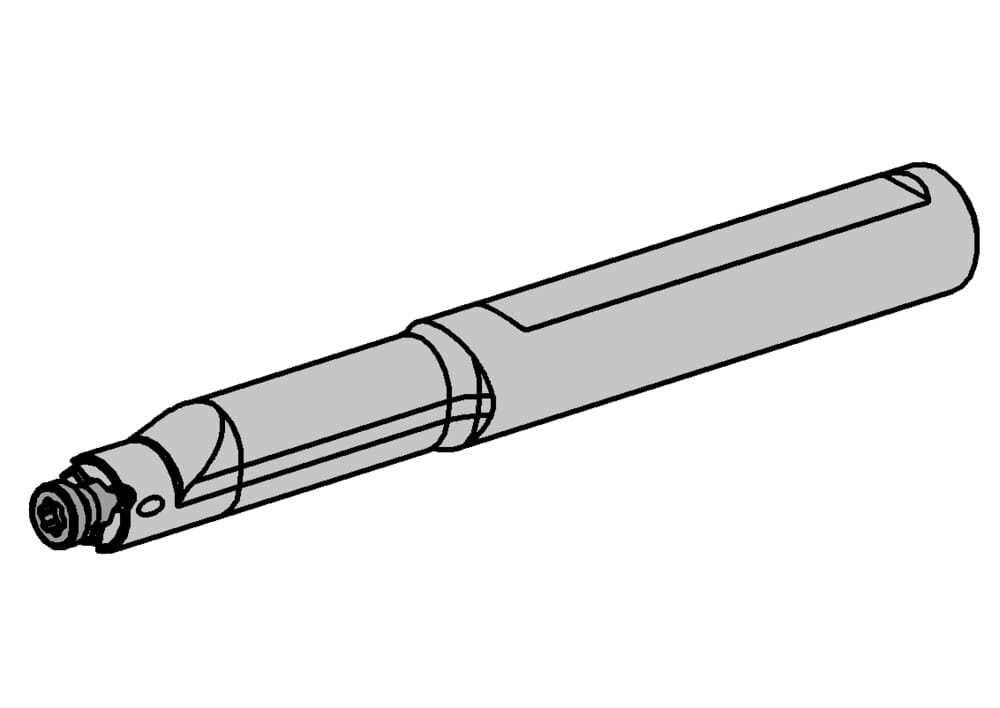

HORN Toolholders B114.0012.01 for Turning
tool-application
static
Katalog_CCTWS
114090R;114090L
Outcropping, neck, working length (l2)
1.339 ˝
34 mm
Shank, clamping diameter (d)
0.472 ˝
12 mm
Length of clamping surface(s) (l4)
1.969 ˝
50 mm
Height clamping surface(s) (h)
0.433 ˝
11 mm
Total length (including cutting insert) (l1)
3.937 ˝
100 mm
| Downloads | |
|---|---|
| B114001201.DXF | Download |
| B114_0012_01_20171121_195441096.STP | Download |
| Download all files | |
