R264.0307.02 TF45
Recommended:
Material number R264030702TF45

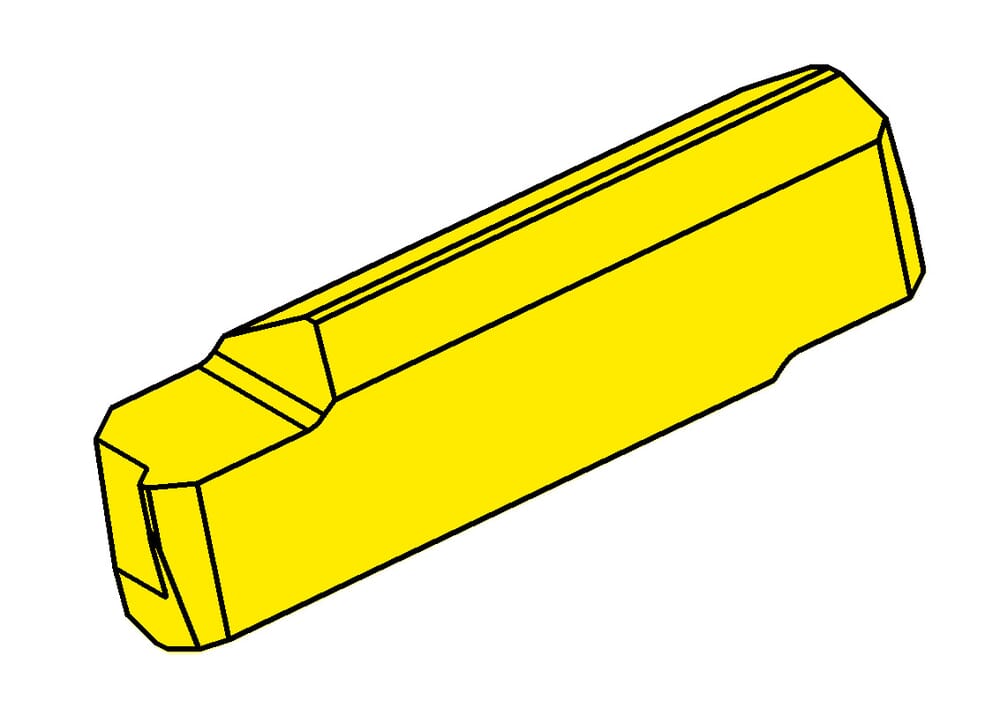

HORN Insert R264.0307.02 TF45 for Gewinden
us-cutting
Yes
tool-application
static
machining-direction-sap
right
Top radius (r)
0.004 ˝
0.1 mm
Pitch (P)
0.028 ˝
0.7 mm
Setting length (E)
0.031 ˝
0.8 mm
Katalog_SSC
26403
Profile, thread depth (h1)
0.017 ˝
0.43 mm
| Downloads | |
|---|---|
| R264_0307_02_TF45-DXF.DXF | Download |
| R264_0307_02_TF45-STP.STP | Download |
| R264_0307_02_TF45-ISO.XML | Download |
| R264_0307_02_TF45-DIN.XML | Download |
| Download all files | |
