RS274.0235.24.20 TH35
Recommended:
Also suitable for:
Material number RS27402352420TH35

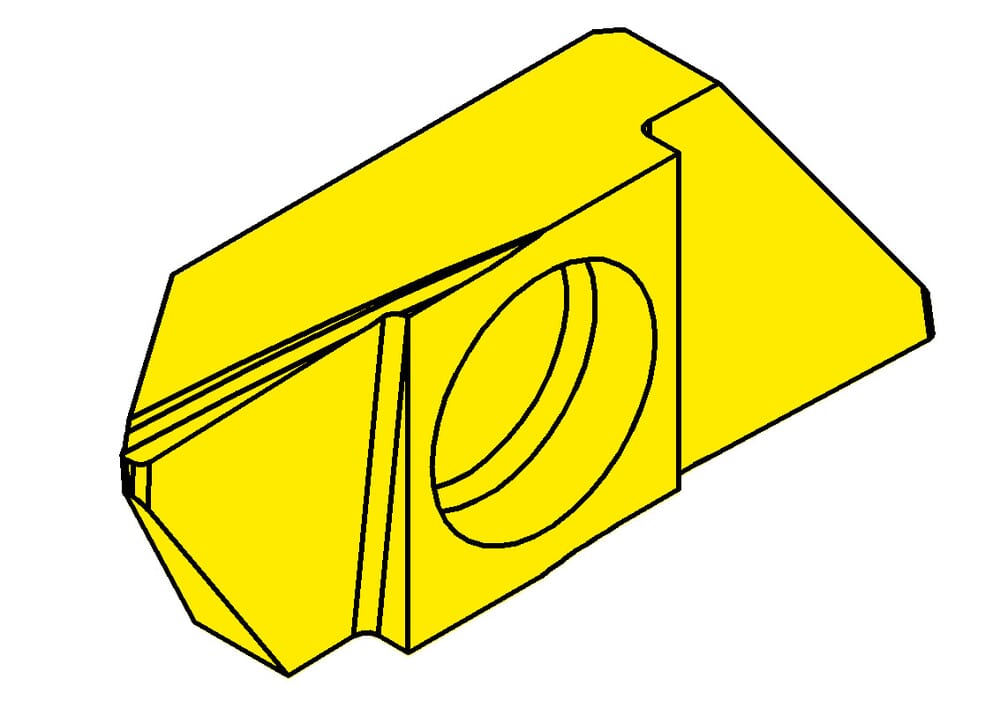

HORN Insert RS274.0235.24.20 TH35 for Turning
Cutting angle (γ)
5 °
us-cutting
Yes
tool-application
static
machining-direction-sap
right
Cancellation (a)
0.004 ˝
0.1 mm
Parting-off chamfer (α1)
35 °
Maximum stepover (ap) (ap)
0.157 ˝
4 mm
Width of groove (mm) (w)
0.008 ˝
0.2 mm
Katalog_SSC
274040R
| Downloads | |
|---|---|
| RS274_0235_24_20_TH35-DXF.DXF | Download |
| RS274_0235_24_20_TH35-STP.STP | Download |
| RS274_0235_24_20_TH35-ISO.XML | Download |
| RS274_0235_24_20_TH35-DIN.XML | Download |
| Download all files | |
