L105.4719.1.4 TH35
Recommended:
Also suitable for:
Material number L105471914TH35

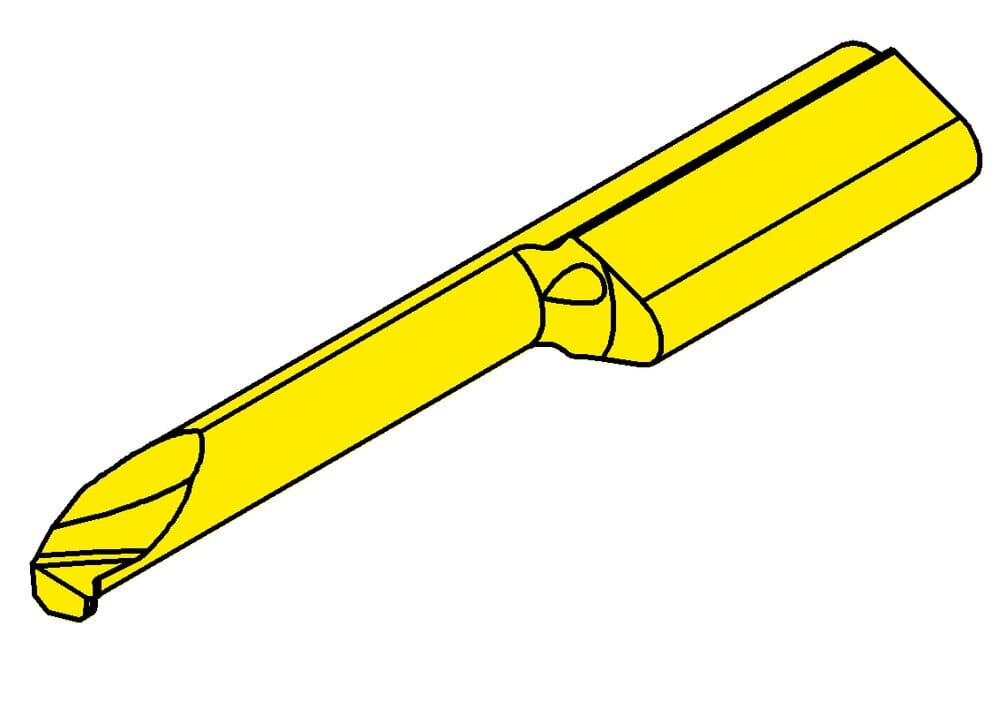

HORN Insert L105.4719.1.4 TH35 for Turning
tool-application
static
Setting range radial (f)
0.075 ˝
1.9 mm
Total length (l5)
0.984 ˝
25 mm
Smallest bore diameter (Dmin)
0.157 ˝
4 mm
machining-direction-sap
left
Neck diameter (d)
0.114 ˝
2.9 mm
cutting
1
us-cutting
Yes
Top radius (r)
0.006 ˝
0.15 mm
Neck length (l2)
0.394 ˝
10 mm
Head size (a)
0.146 ˝
3.7 mm
Maximum depth of groove (tmax)
0.024 ˝
0.6 mm
Width of blank (b)
0.252 ˝
6.4 mm
Katalog_SSC
105124
| Downloads | |
|---|---|
| L105_4719_1_4_TH35-DXF.DXF | Download |
| L105_4719_1_4_TH35-STP.STP | Download |
| L105_4719_1_4_TH35-ISO.XML | Download |
| L105_4719_1_4_TH35-DIN.XML | Download |
| Download all files | |
