R264.0825.10 TN35
Recommended:
Also suitable for:
Material number R264082510TN35

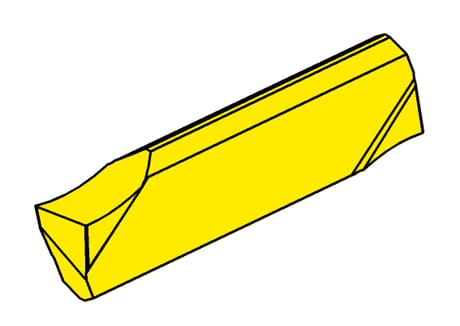

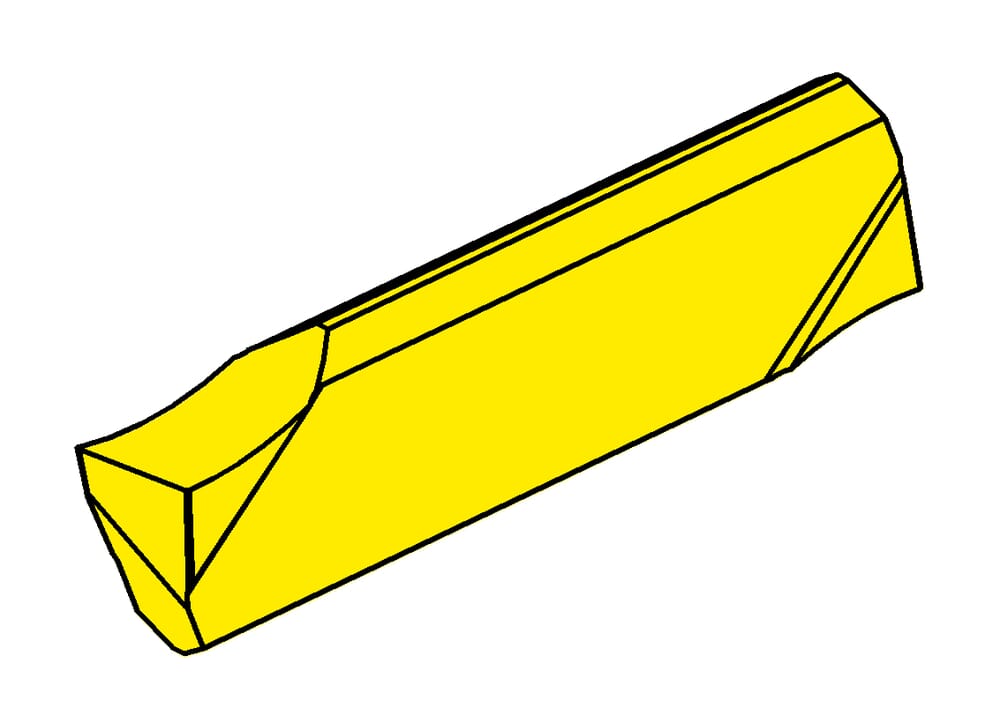

HORN Inserts R264.0825.10 TN35 for Turning
Katalog_SSC
26403
Width of groove (mm) (w)
0.098 ˝
2.5 mm
Corner radius (r)
0.004 ˝
0.1 mm
us-cutting
Yes
machining-direction-sap
right
tool-application
static
Parting-off chamfer (α)
8 °
| Downloads | |
|---|---|
| R264_0825_10_TN35-DXF.DXF | Download |
| R264_0825_10_TN35-STP.STP | Download |
| R264_0825_10_TN35-ISO.XML | Download |
| R264_0825_10_TN35-DIN.XML | Download |
| Download all files | |
