Material number M313001601E

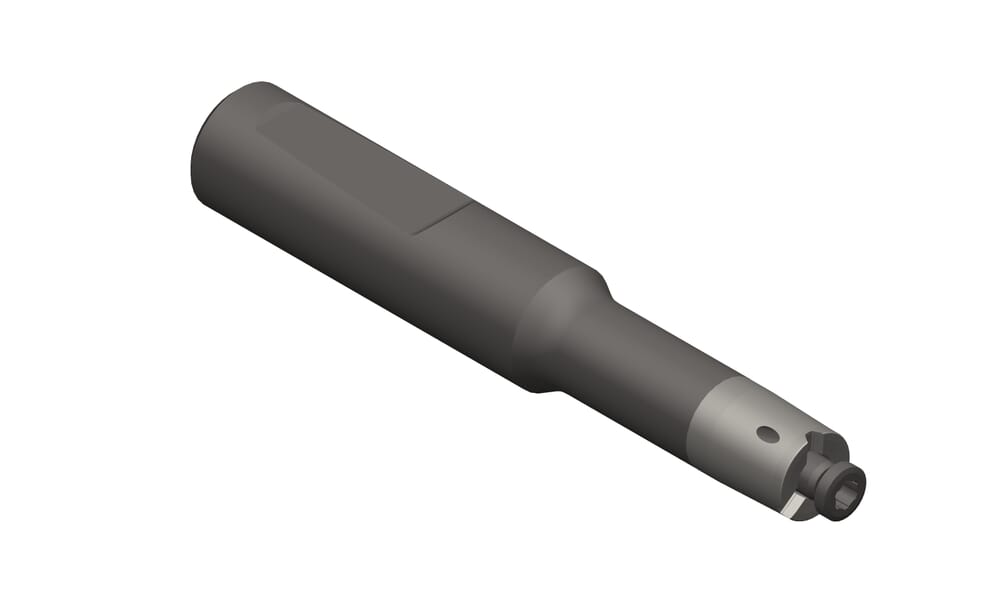

HORN Toolholders M313.0016.01E for Milling

Cutting data and technical instructions

Total length insert (l1)
3.937 ˝
100 mm
tool-application
rotating
Working length, Neck length, Extension length (l2)
1.654 ˝
42 mm
Neck diameter (d1)
0.472 ˝
12 mm
Shank diameter (d)
0.63 ˝
16 mm
Katalog_CCTWS
313113R;313113L
Downloads
M313001601E_20210628_170426500.DXF Download
M313_0016_01E_20171121_212805928.STP Download
Download all files
