M328.0020.D.00A
Material number M3280020D00A

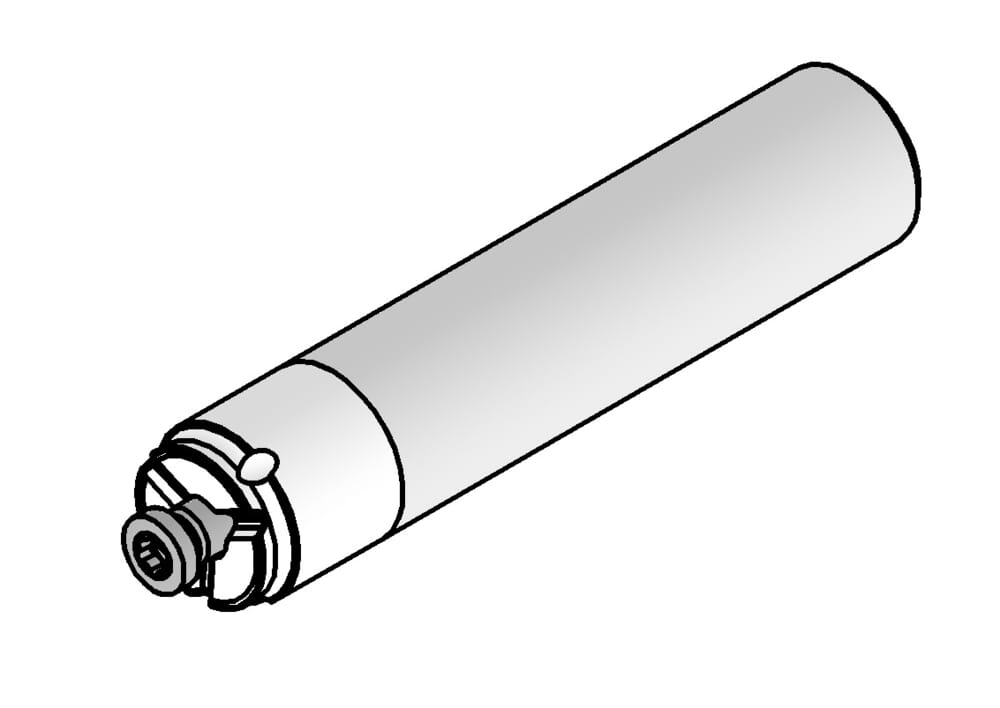

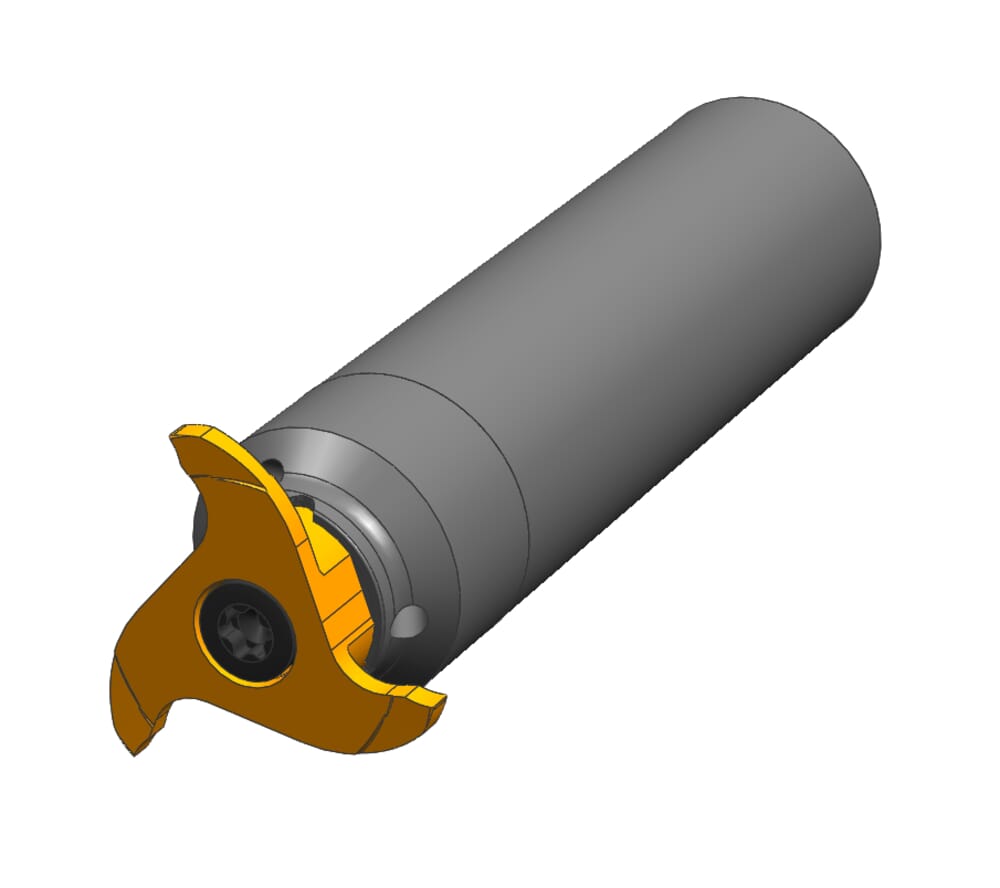

HORN Toolholder M328.0020.D.00A for Milling

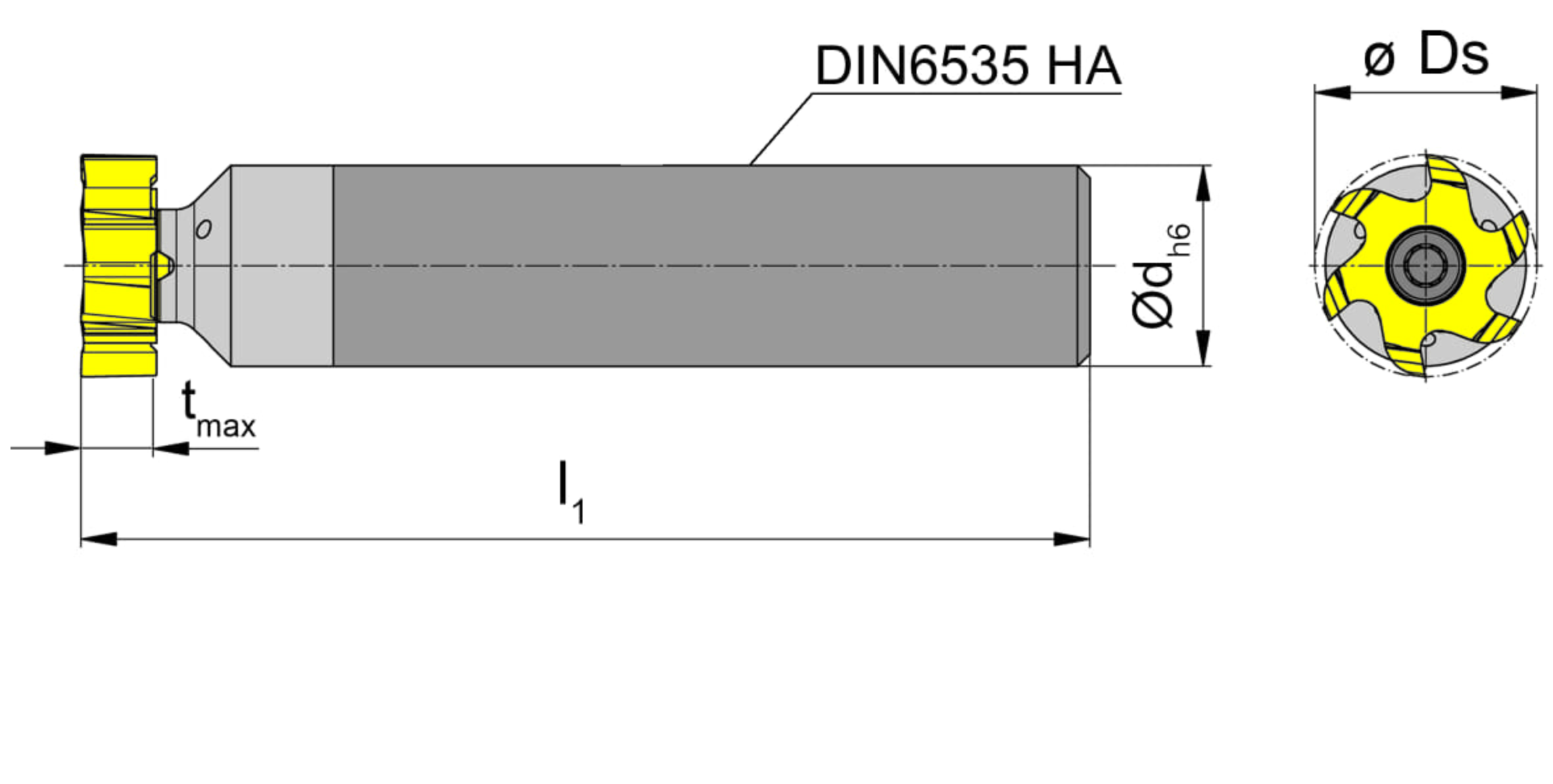

Shank diameter (d)
0.787 ˝
20 mm
Katalog_CCTWS
328143R
Total length insert (l1)
3.15 ˝
80 mm
tool-application
rotating
| Downloads | |
|---|---|
| M328_0020_D_00A-DXF.DXF | Download |
| M328_0020_D_00A-STP.STP | Download |
| M328_0020_D_00A-ISO.XML | Download |
| M328_0020_D_00A-DIN.XML | Download |
| Download all files | |
