M308.0012.02A
Material number M308001202A

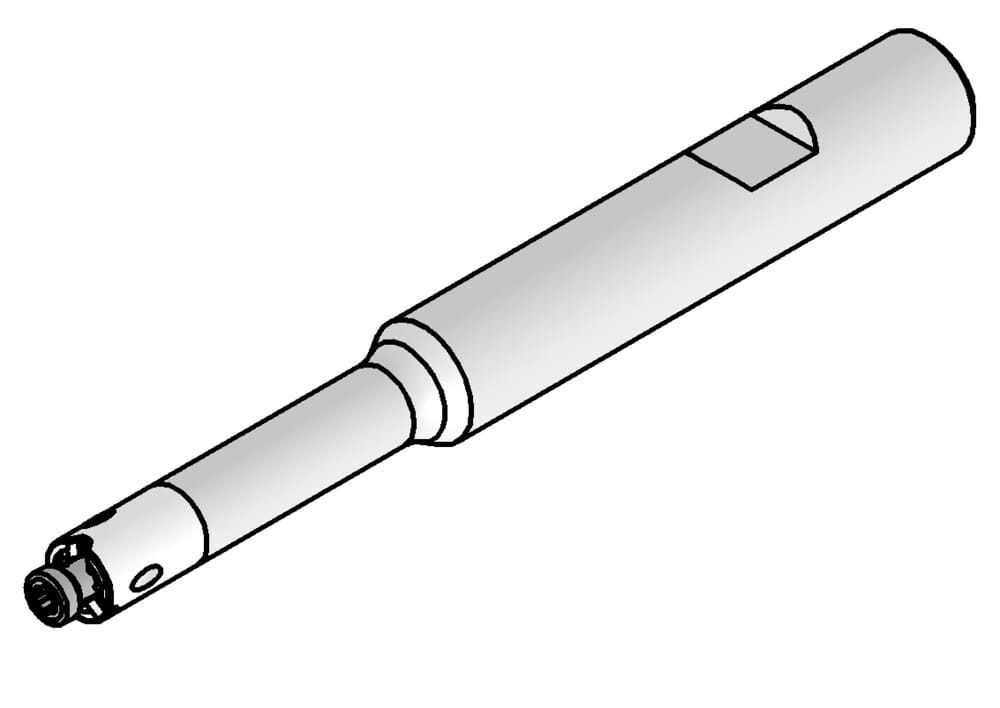

HORN Toolholders M308.0012.02A for Milling
Total length insert (l1)
4.331 ˝
110 mm
tool-application
rotating
Working length, Neck length, Extension length (l2)
1.654 ˝
42 mm
Neck diameter (d1)
0.315 ˝
8 mm
Shank diameter (d)
0.472 ˝
12 mm
Katalog_CCTWS
308080R;308080L
| Downloads | |
|---|---|
| M308_0012_02A-ISO.XML | Download |
| M308_0012_02A-DXF.DXF | Download |
| M308_0012_02A-STP.STP | Download |
| M308_0012_02A-DIN.XML | Download |
| Download all files | |
