M308_0012_07A-PICTO.TIF
M308_0012_07A-PICTO.TIF M308001207A.TIF

M308.0012.07A

IK_GENERELL.EPS GEWINDE_INNEN_FRAESEN.EPS SCHAFTFORM_HA_H6.EPS

Material number M308001207A

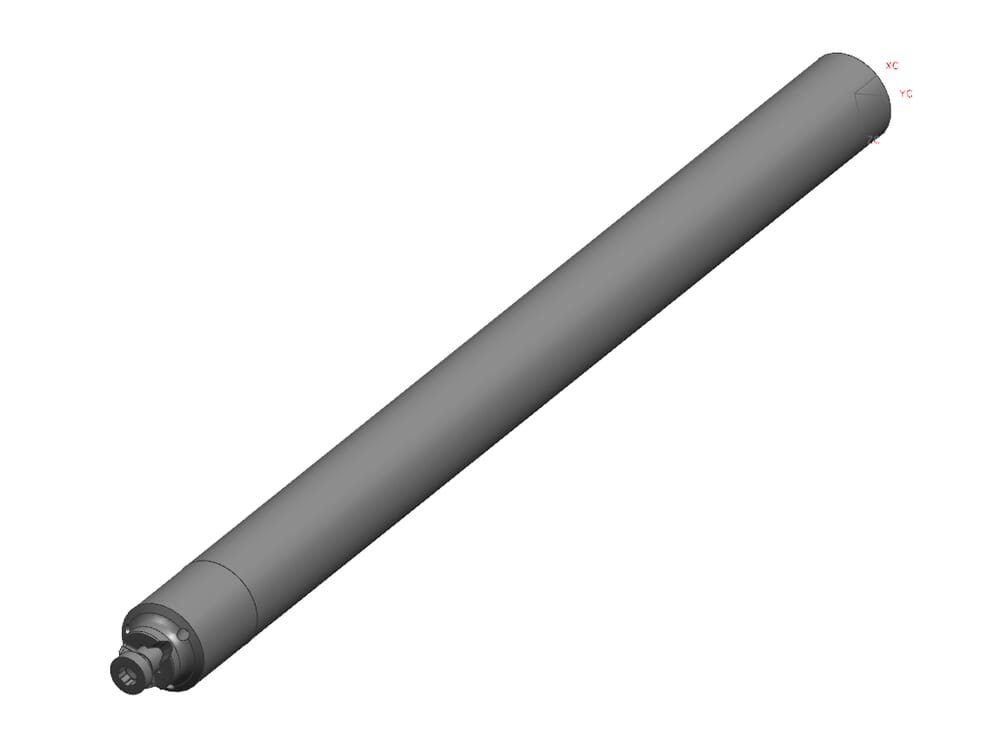

HORN Toolholders M308.0012.07A for Milling

Cutting data and technical instructions

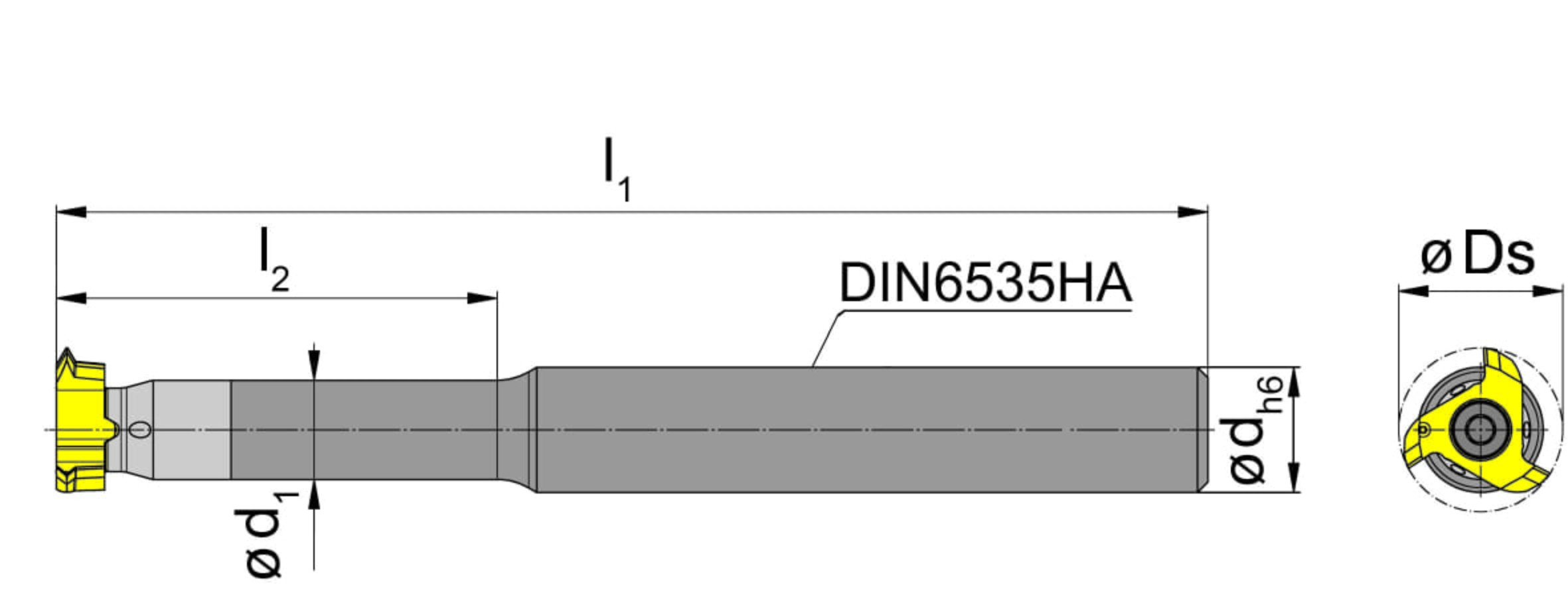

Neck diameter (d1)
0.315 ˝
8 mm
tool-application
rotating
Total length insert (l1)
6.299 ˝
160 mm
Shank diameter (d)
0.472 ˝
12 mm
Katalog_CCTWS
308080R;308080L
Downloads
M308_0012_07A-DXF.DXF Download
M308_0012_07A-STP.STP Download
M308_0012_07A-ISO.XML Download
M308_0012_07A-DIN.XML Download
Download all files
