M409.040.D32.6.05B

Material number M409040D32605B

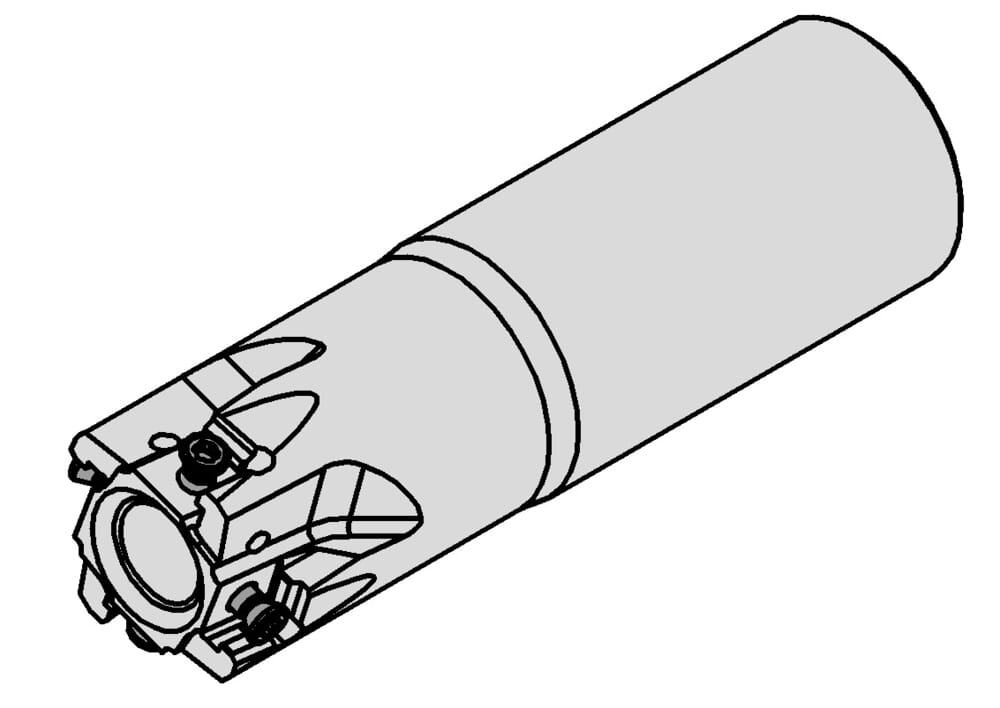

HORN tool holder M409.040.D32.6.05B for Milling

Total length insert (l1)

4.37 ˝

111 mm

tool-application

rotating

Tension length (l3)

2.362 ˝

60 mm

Working length, Neck length, Extension length (l2)

1.85 ˝

47 mm

Neck diameter (d1)

1.535 ˝

39 mm

Cutting depth (ap)

0.366 ˝

9.3 mm

Shank diameter (d)

1.26 ˝

32 mm

Katalog_CCTWS

40900R

Cutting diameter (Ds)

1.575 ˝

40 mm

DS Milling cutter

DSR30405006TS3K
