M275.036.M16.1.04
Material number M275036M16104

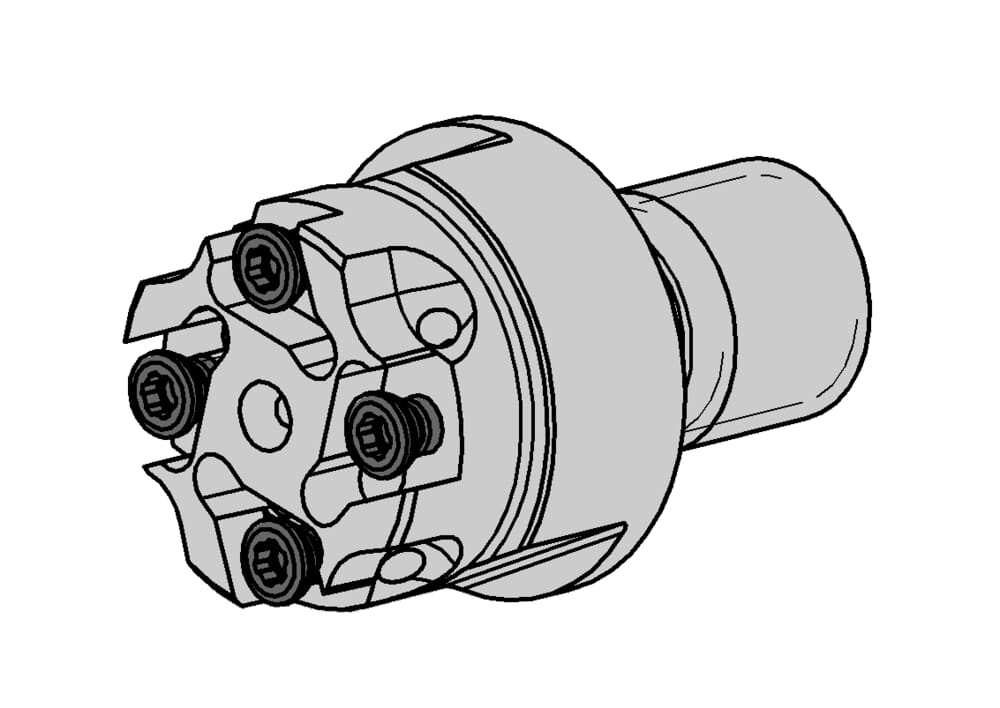

HORN Toolholder M275.036.M16.1.04 for Milling
Key range (SW)
1.063 ˝
27 mm
tool-application
rotating
Neck diameter on stop (d4)
1.142 ˝
29 mm
Neck diameter (d1)
1.181 ˝
30 mm
Length from stop (l2)
0.866 ˝
22 mm
Total milling length with insert (l1)
1.772 ˝
45 mm
Cutting diameter (Ds)
1.417 ˝
36 mm
Katalog_CCTWS
275041R;275043R
| Downloads | |
|---|---|
| M275036M16104_20210629_185403064.DXF | Download |
| M275_036_M16_1_04_20171121_225509197.STP | Download |
| Download all files | |
