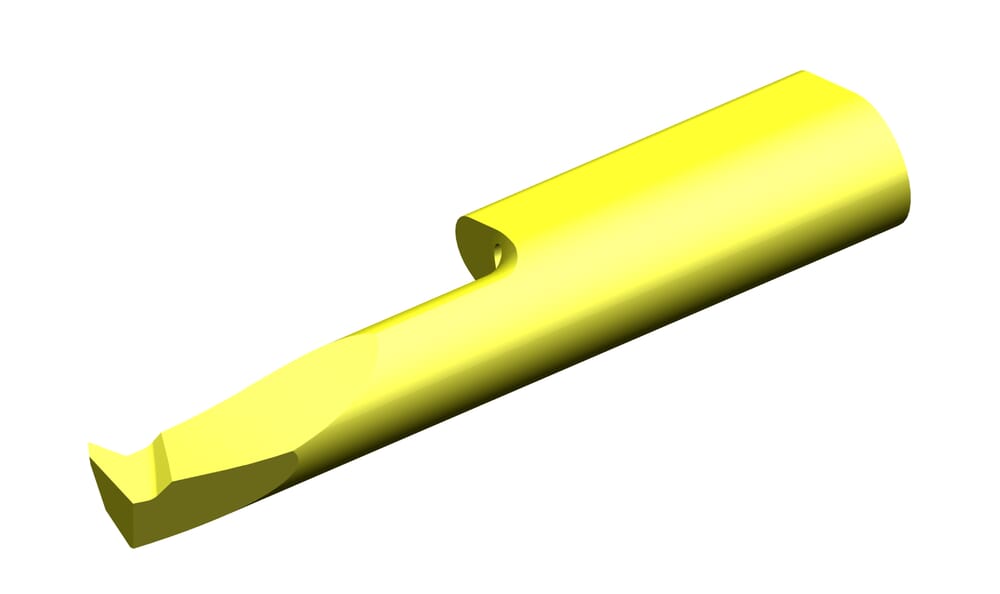

HORN insert L105.0205.2.5 TH35 for Gewinden

Cutting data and technical instructions

Smallest bore diameter (Dmin)
0.197 ˝
5 mm
tool-application
static
machining-direction-sap
left
Pitch (P)
0.02 ˝
0.5 mm
Setting length (E)
0.014 ˝
0.35 mm
Cutting insert width (a)
0.185 ˝
4.7 mm
Setting range radial (f)
0.091 ˝
2.3 mm
Neck diameter (d)
0.138 ˝
3.5 mm
Neck length (l2)
0.591 ˝
15 mm
Katalog_SSC
105125
Width of blank (b)
0.276 ˝
7 mm
Cutting insert total length (l5)
1.181 ˝
30 mm
