L105.0407.3.4 TN35
Recommended:
Also suitable for:
Material number L105040734TN35

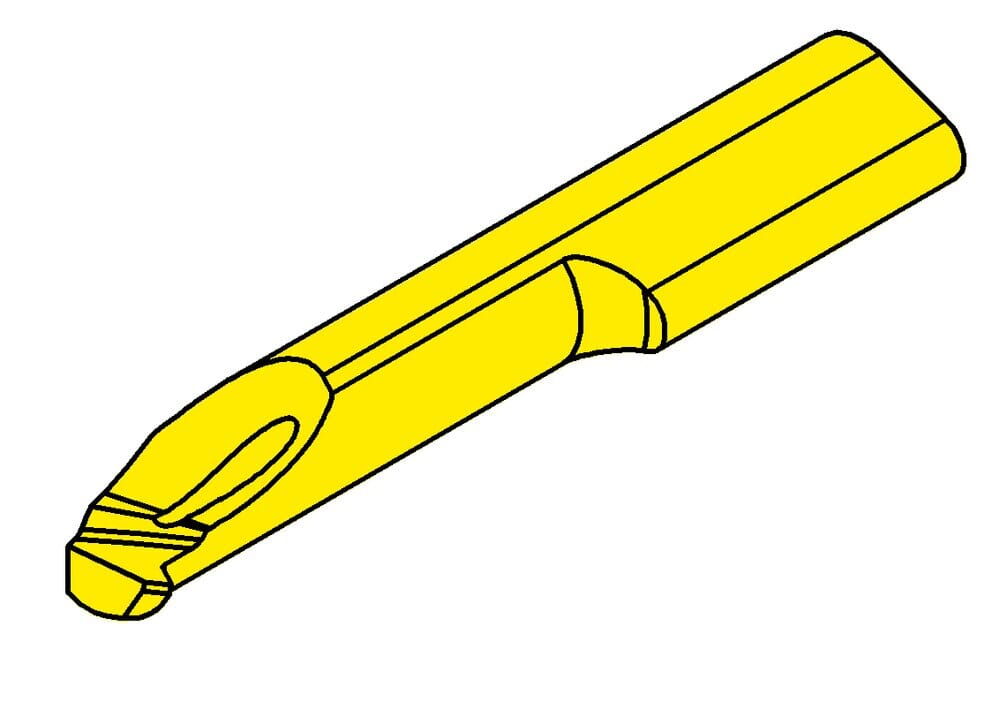

HORN Insert L105.0407.3.4 TN35 for Gewinden
machining-direction-sap
left
Setting length (E)
0.018 ˝
0.45 mm
Smallest bore diameter (Dmin)
0.157 ˝
4 mm
Pitch (P)
0.02 ˝
0.5 mm
Maximum pitch (Pmax)
0.03 ˝
0.75 mm
Cutting insert width (a)
0.146 ˝
3.7 mm
tool-application
static
us-cutting
Yes
Neck diameter (d)
0.106 ˝
2.7 mm
Neck length (l2)
0.787 ˝
20 mm
Cutting insert total length (l5)
1.378 ˝
35 mm
Width of blank (b)
0.252 ˝
6.4 mm
Katalog_SSC
105124
Setting range radial (f)
0.075 ˝
1.9 mm
| Downloads | |
|---|---|
| L105_0407_3_4_TN35-STP.STP | Download |
| L105_0407_3_4_TN35-ISO.XML | Download |
| L105_0407_3_4_TN35-DIN.XML | Download |
| Download all files | |
