L231.4040.32 TN35
Material number L231404032TN35

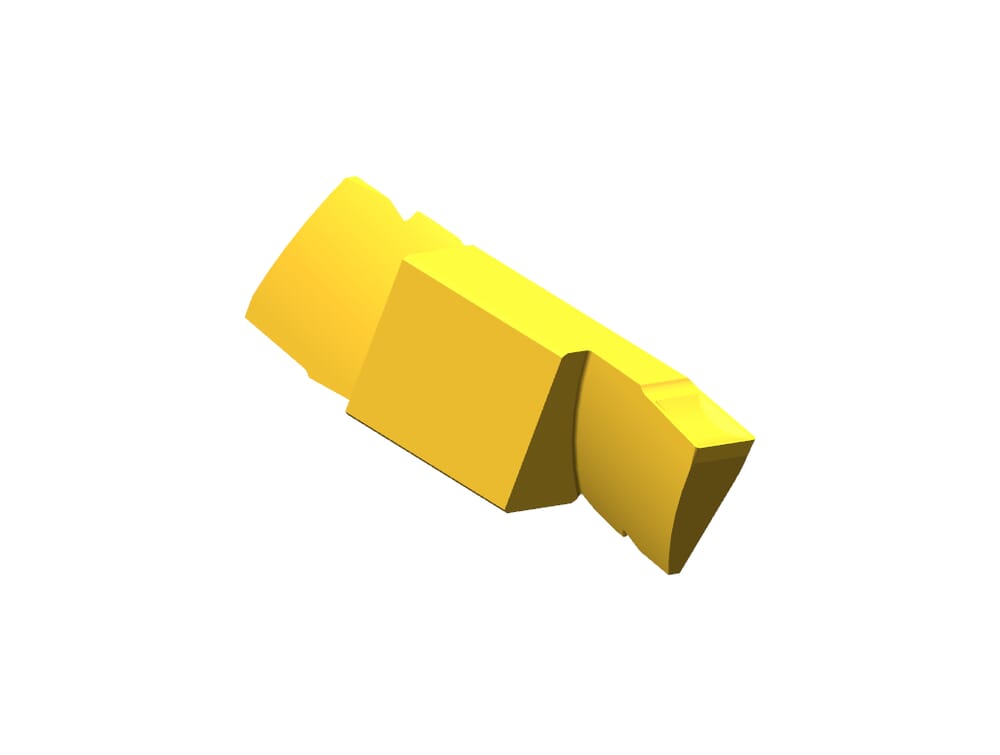

HORN Inserts L231.4040.32 TN35 for Turning
Cutting insert width (s)
0.15 ˝
3.8 mm
tool-application
static
machining-direction-sap
left
Width of groove (mm) (w)
0.157 ˝
4 mm
Corner radius (r)
0.008 ˝
0.2 mm
Maximum depth of groove (tmax)
0.315 ˝
8 mm
Katalog_SSC
23104L
Smallest axial bore diameter (Da min)
1.575 ˝
40 mm
| Downloads | |
|---|---|
| L231404032.DXF | Download |
| L231404032_20230112_234051503.STP | Download |
| Download all files | |
