335.0600.00 TI25
Insert
Material number 335060000TI25

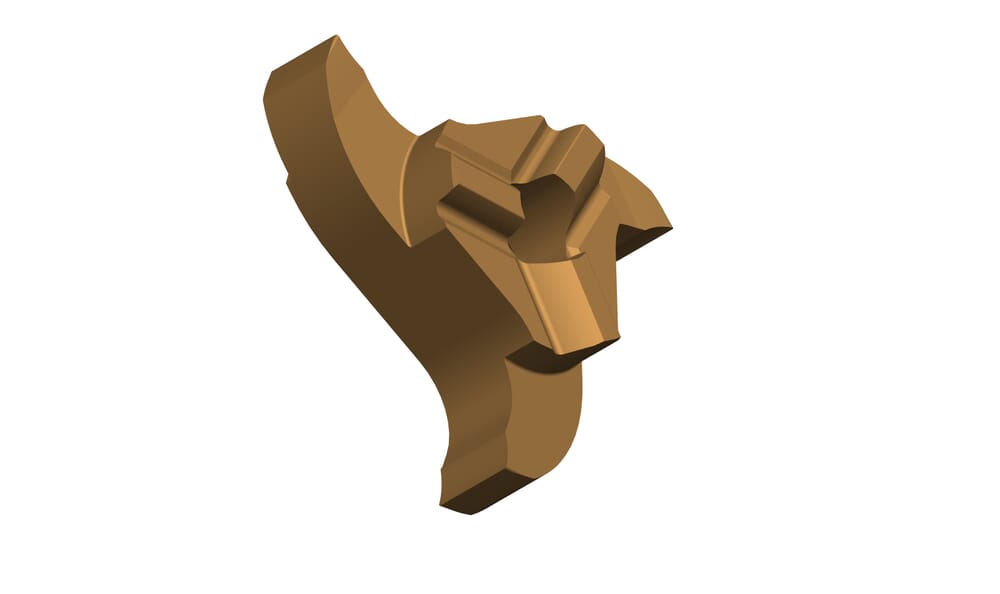

HORN Insert 335.0600.00 TI25 for Milling
DIN_SSC
HORN33517584R

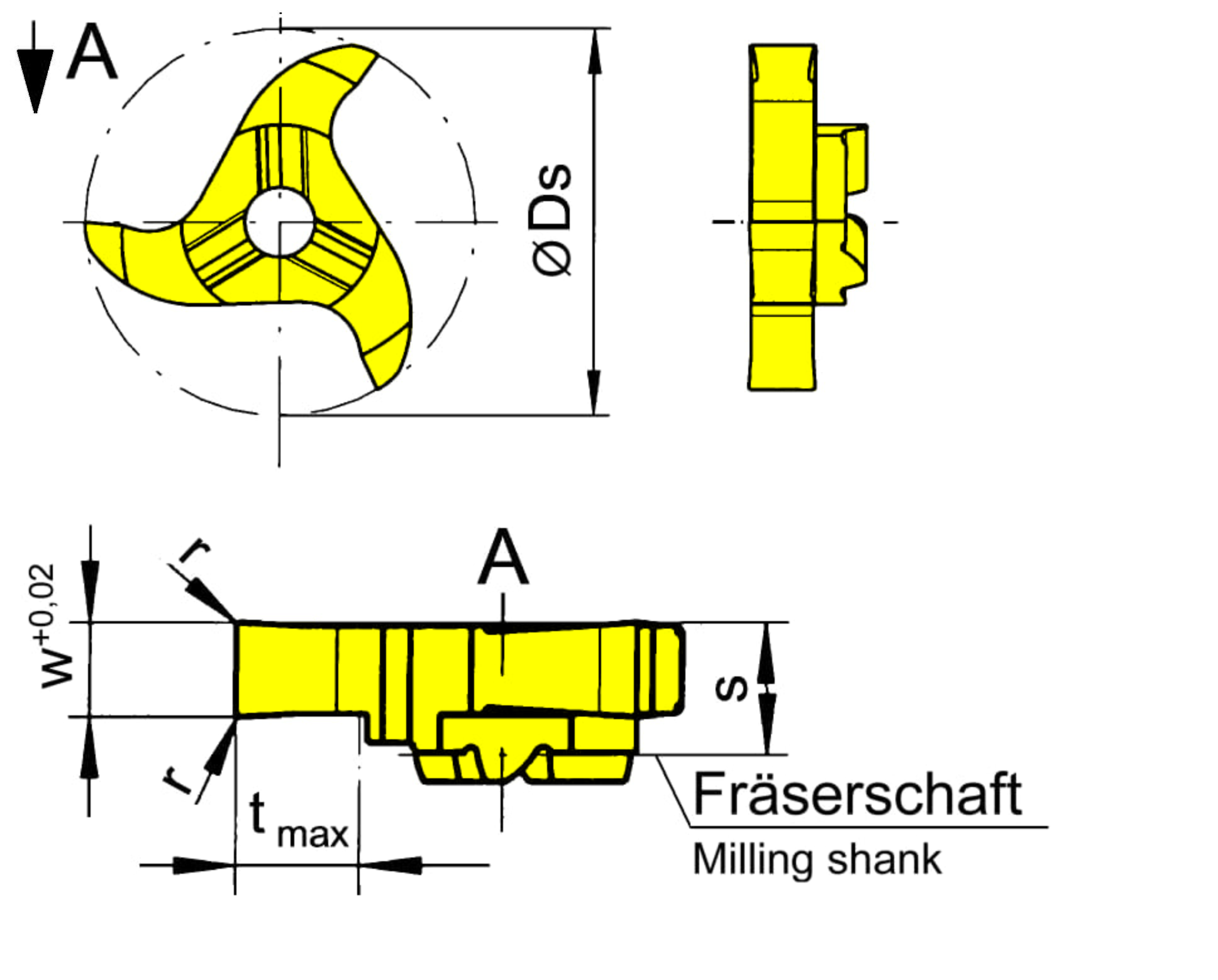

Cutting insert thickness, setting length complete (s)
0.343
˝
8.7
mm
Maximum milling depth/ depth of groove (tmax)
0.315
˝
8
mm
Width of groove (w)
0.236
˝
6
mm
Corner radius (r)
0.008
˝
0.2
mm
Katalog_SSC
335175R
ISO_SSC
HORN335175$84R$$$$$
Cutting diameter (Ds)
1.366
˝
34.7
mm
| Downloads | |
|---|---|
| 335060000_20210630_114052877.STP | Download |
| 335060000_20210706_165620393.DXF | Download |
| Download all files | |
