M406.040.D20.2.06A

Material number M406040D20206A

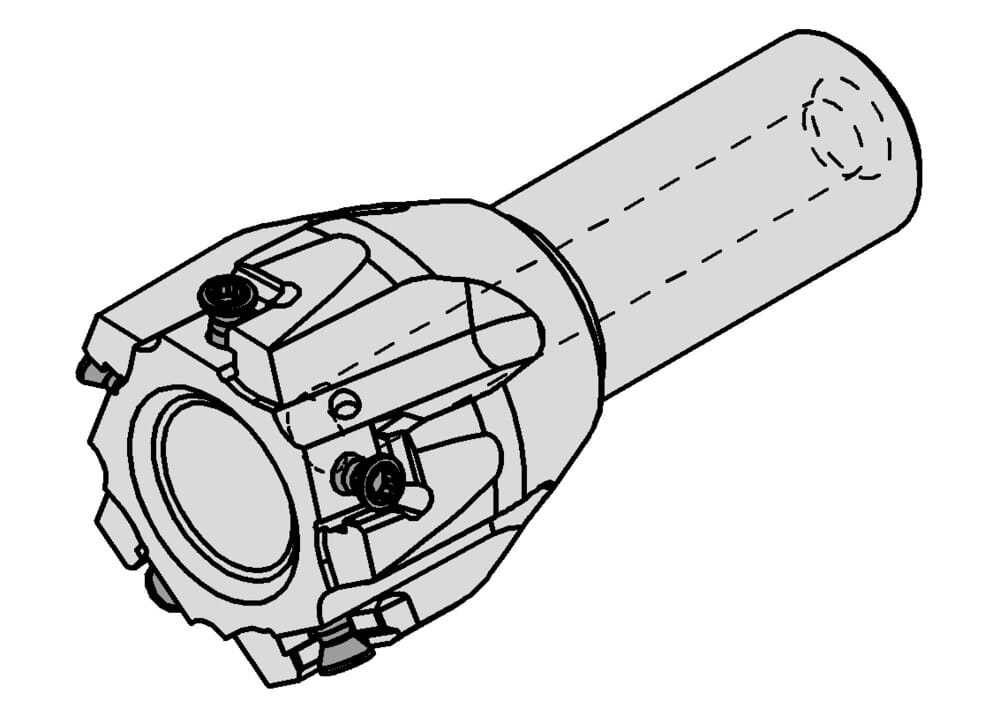

HORN End mills M406.040.D20.2.06A for Milling

Total length insert (l1)

2.559 ˝

65 mm

tool-application

rotating

Tension length (l3)

1.378 ˝

35 mm

Working length, Neck length, Extension length (l2)

1.181 ˝

30 mm

Neck diameter (d1)

1.535 ˝

39 mm

Cutting depth (ap)

0.248 ˝

6.3 mm

Shank diameter (d)

0.787 ˝

20 mm

Katalog_CCTWS

40600R

Cutting diameter (Ds)

1.575 ˝

40 mm

tool holder

M409040D32605B

DS Milling cutter

DSR30405006TS3K
