L109.0200.3.6 TH35
Recommended:
Also suitable for:
Material number L109020036TH35

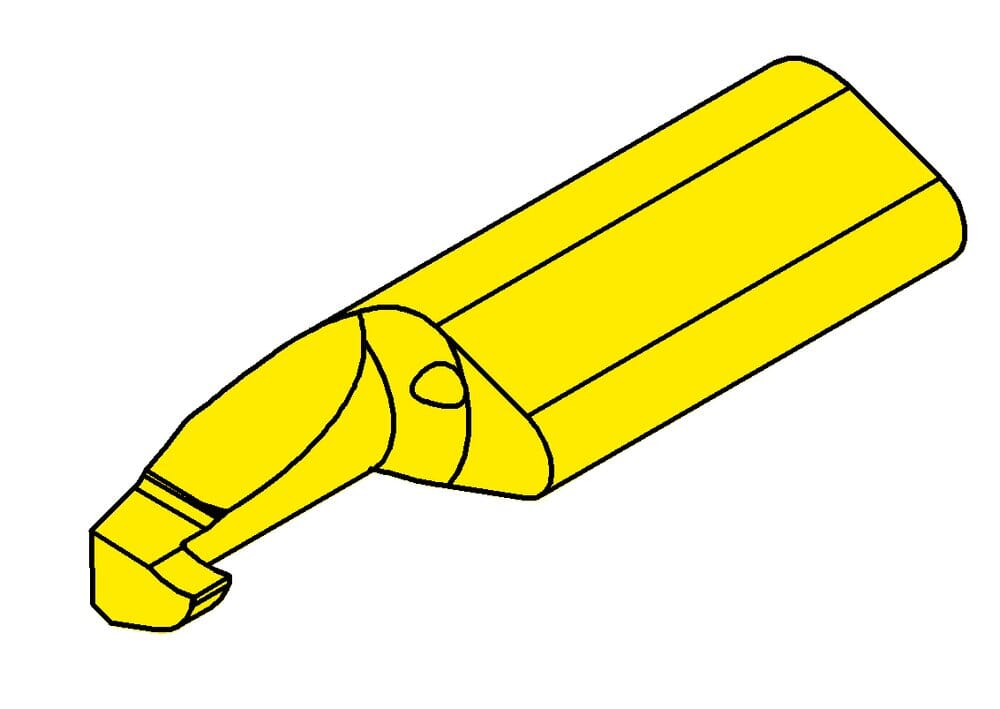

HORN insert L109.0200.3.6 TH35 for Turning
Neck diameter (d)
0.146 ˝
3.7 mm
cutting
1
machining-direction-sap
left
tool-application
static
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
Total length (l5)
1.496 ˝
38 mm
Setting range radial (f)
0.11 ˝
2.8 mm
Neck length (l2)
0.787 ˝
20 mm
Width of groove (mm) (w)
0.079 ˝
2 mm
Katalog_SSC
109140
Maximum depth of groove (tmax)
0.071 ˝
1.8 mm
Head size (a)
0.224 ˝
5.7 mm
| Downloads | |
|---|---|
| L109_0200_3_6_TH35-DXF.DXF | Download |
| L109_0200_3_6_TH35-STP.STP | Download |
| L109_0200_3_6_TH35-ISO.XML | Download |
| L109_0200_3_6_TH35-DIN.XML | Download |
| Download all files | |
