R105.0815.2.8 EG35
Material number R105081528EG35

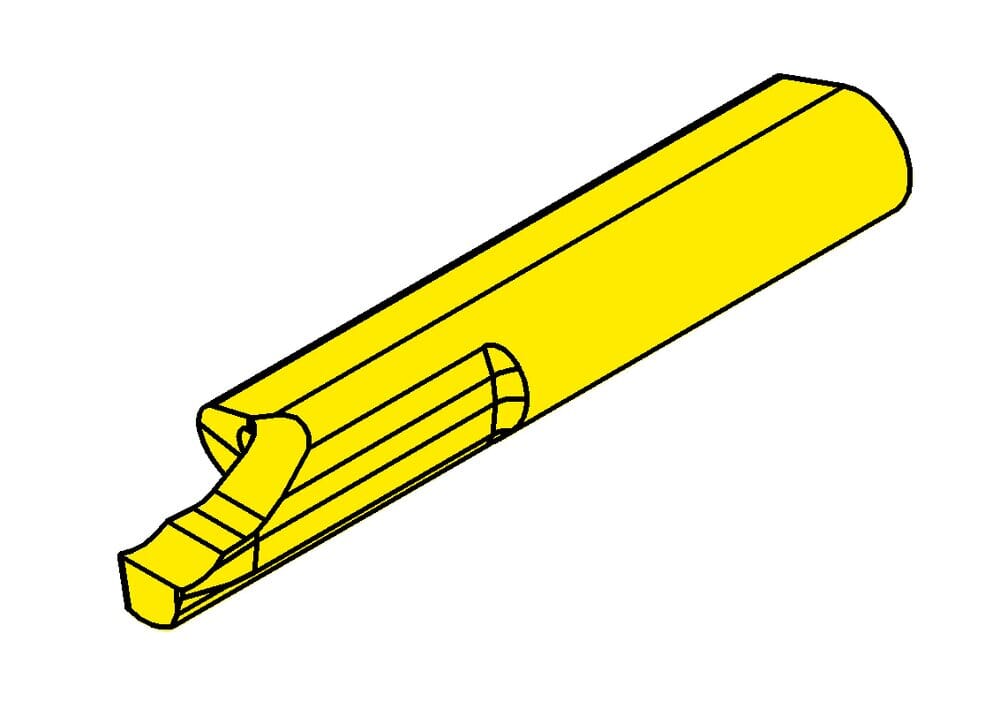

HORN Insert R105.0815.2.8 EG35 for Turning
tool-application
static
machining-direction-sap
right
Total length (l5)
1.378 ˝
35 mm
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Corner radius (r)
0.006 ˝
0.15 mm
Katalog_SSC
105125
Neck length (l2)
0.591 ˝
15 mm
Smallest axial bore diameter (Da min)
0.315 ˝
8 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax a)
0.118 ˝
3 mm
Adjustment dimension cutting center (f)
0.079 ˝
2 mm
| Downloads | |
|---|---|
| R105081528_20230113_233505980.STP | Download |
| R105081528.DXF | Download |
| Download all files | |
