DST.2.080.050.030 TS3K
Recommended:
Also suitable for:
Material number DST2080050030TS3K

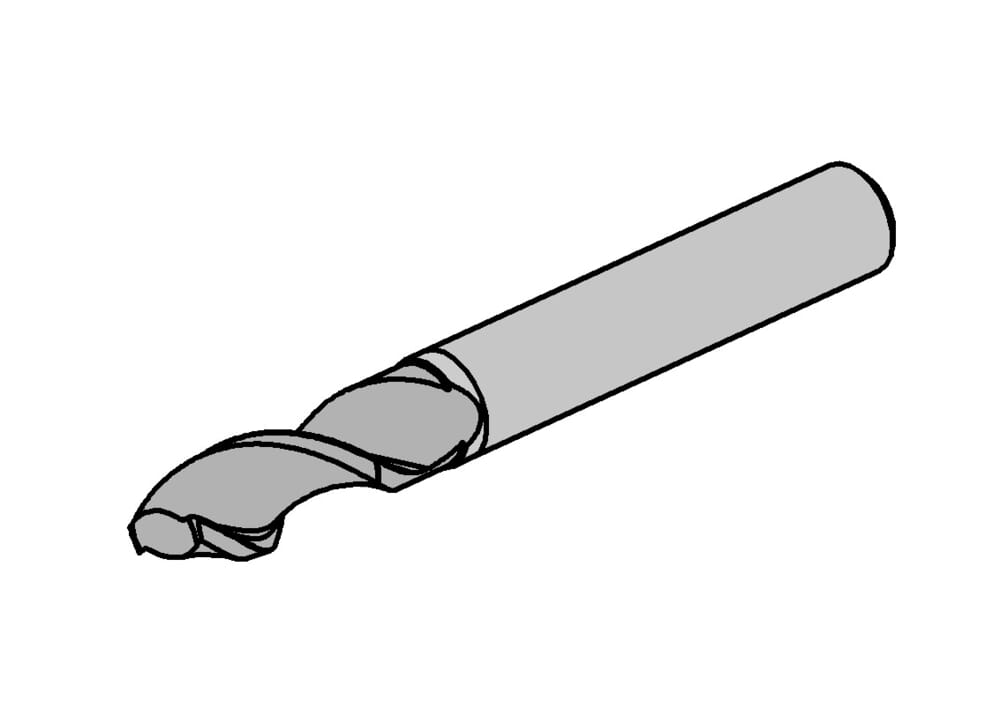

HORN DS endmill DST.2.080.050.030 TS3K for Milling
Total length (l1)
2.52 ˝
64 mm
tool-application
rotating
Effective cutting length (l2)
0.63 ˝
16 mm
Neck diameter (d3)
0.299 ˝
7.6 mm
Shank diameter (d2)
0.315 ˝
8 mm
Radius, full-radius (r)
0.02 ˝
0.5 mm
Cutting diameter (d1)
0.315 ˝
8 mm
Neck length (l3)
0.945 ˝
24 mm
| Downloads | |
|---|---|
| DST2080050030_20240205_195556073.DXF | Download |
| DST2080050030.STP | Download |
| Download all files | |
