DST.2.02.05.063.06 TS3K
Recommended:
Also suitable for:
Material number DST2020506306TS3K
HORN DS Milling cutter DST.2.02.05.063.06 TS3K for Milling

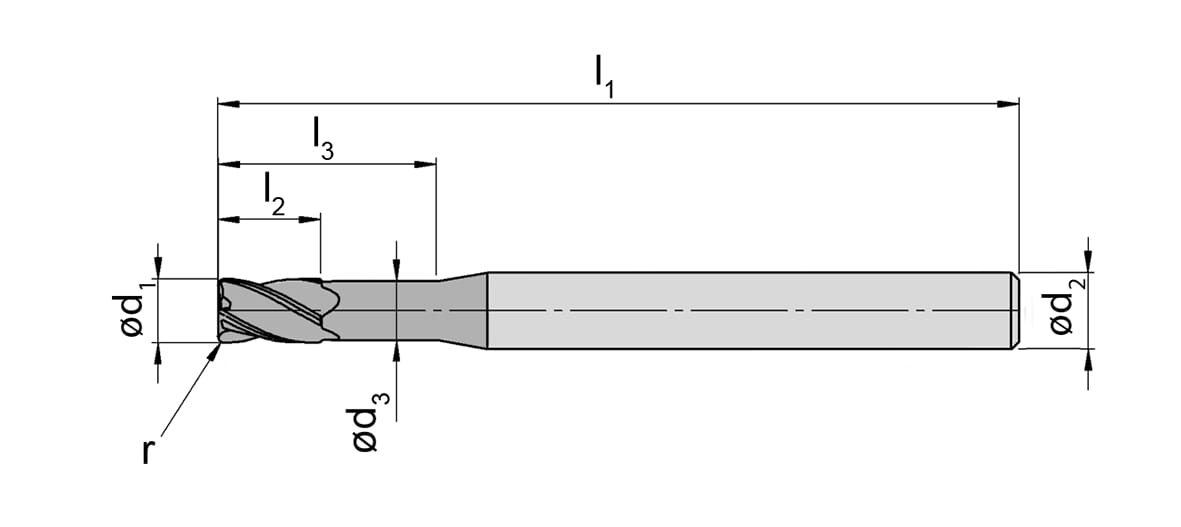

Total length (l1)
2.48 ˝
63 mm
tool-application
rotating
Effective cutting length (l2)
0.118 ˝
3 mm
Neck diameter (d3)
0.075 ˝
1.9 mm
Shank diameter (d2)
0.236 ˝
6 mm
Corner radius (r)
0.02 ˝
0.5 mm
Cutting diameter (d1)
0.079 ˝
2 mm
Neck length (l3)
0.217 ˝
5.5 mm
| Downloads | |
|---|---|
| DST_2_02_05_063_06_20171121_200606717.STP | Download |
| Download all files | |
