DSMR.6.050.050.20 TS3K
Recommended:
Also suitable for:
Material number DSMR605005020TS3K

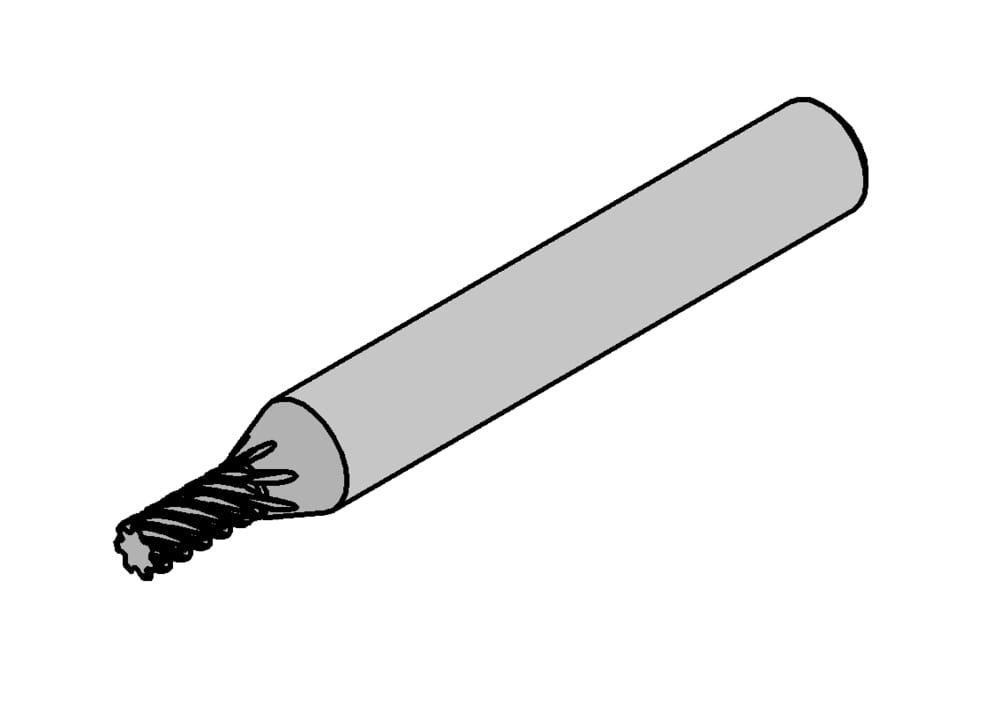

HORN DS-Multi cutter Ø5 R0,5 2xØ Z6 DSMR.6.050.050.20 TS3K for Milling
Total length (l1)
2.244 ˝
57 mm
Effective cutting length (l2)
0.394 ˝
10 mm
Corner radius (r)
0.5 mm
us-cutting
Yes
tool-application
rotating
Cutting diameter (d1)
0.197 ˝
5 mm
Shank diameter (d2)
0.236 ˝
6 mm
| Downloads | |
|---|---|
| DSMR_6_050_050_20_TS3K-ISO.XML | Download |
| DSMR_6_050_050_20_TS3K-DIN.XML | Download |
| Download all files | |
