DSMR.6.040.050.40 TS3K
Recommended:
Also suitable for:
Material number DSMR604005040TS3K

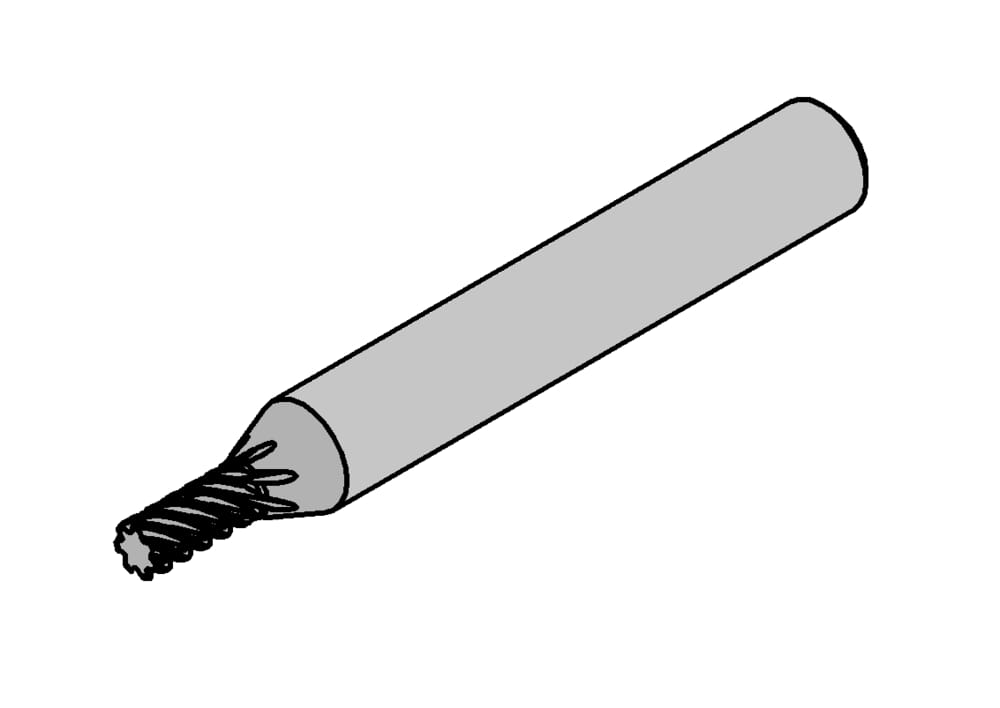

HORN DS-Multi cutter Ø4 R0,5 4xØ Z6 DSMR.6.040.050.40 TS3K for Milling
us-cutting
Yes
tool-application
rotating
Shank diameter (d2)
0.236 ˝
6 mm
Total length (l1)
2.244 ˝
57 mm
Effective cutting length (l2)
0.63 ˝
16 mm
Corner radius (r)
0.5 mm
Cutting diameter (d1)
0.157 ˝
4 mm
| Downloads | |
|---|---|
| DSMR_6_040_050_40_TS3K-DXF.DXF | Download |
| DSMR_6_040_050_40_TS3K-STP.STP | Download |
| DSMR_6_040_050_40_TS3K-ISO.XML | Download |
| DSMR_6_040_050_40_TS3K-DIN.XML | Download |
| Download all files | |
