DSMR.6.040.050.20 TS3K
Recommended:
Also suitable for:
Material number DSMR604005020TS3K

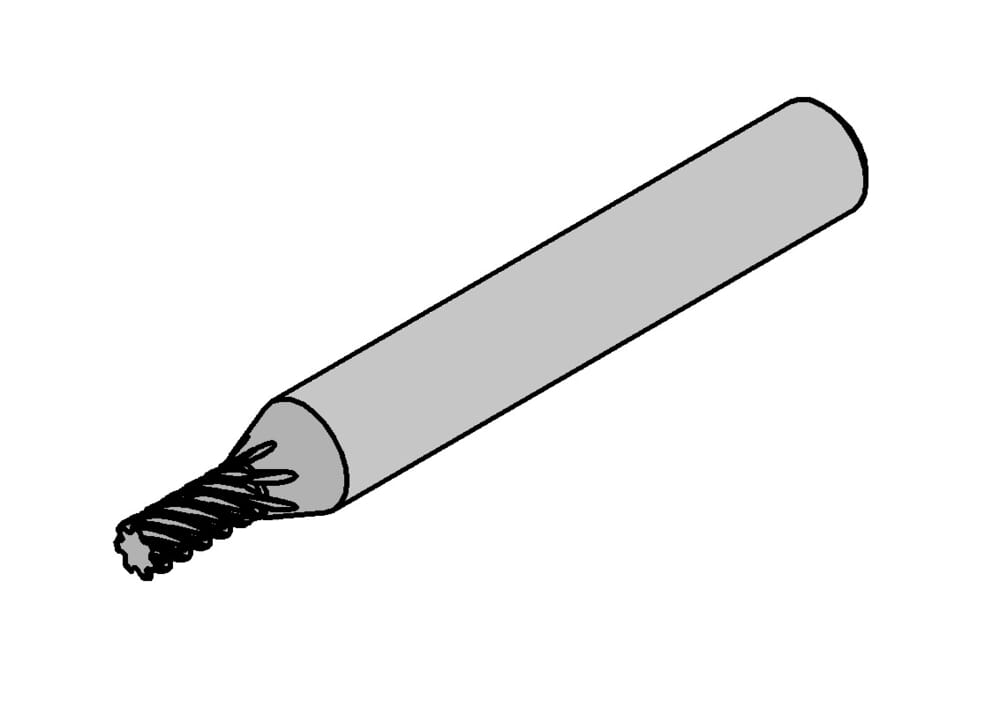

HORN DS-Multi cutter Ø4 R0,5 2xØ Z6 DSMR.6.040.050.20 TS3K for Milling
us-cutting
Yes
tool-application
rotating
Shank diameter (d2)
0.236 ˝
6 mm
Total length (l1)
2.244 ˝
57 mm
Effective cutting length (l2)
0.315 ˝
8 mm
Corner radius (r)
0.5 mm
Cutting diameter (d1)
0.157 ˝
4 mm
| Downloads | |
|---|---|
| DSMR_6_040_050_20_TS3K-ISO.XML | Download |
| DSMR_6_040_050_20_TS3K-DIN.XML | Download |
| Download all files | |
