DA31.016.A.04 TA45

Material number DA31016A04TA45

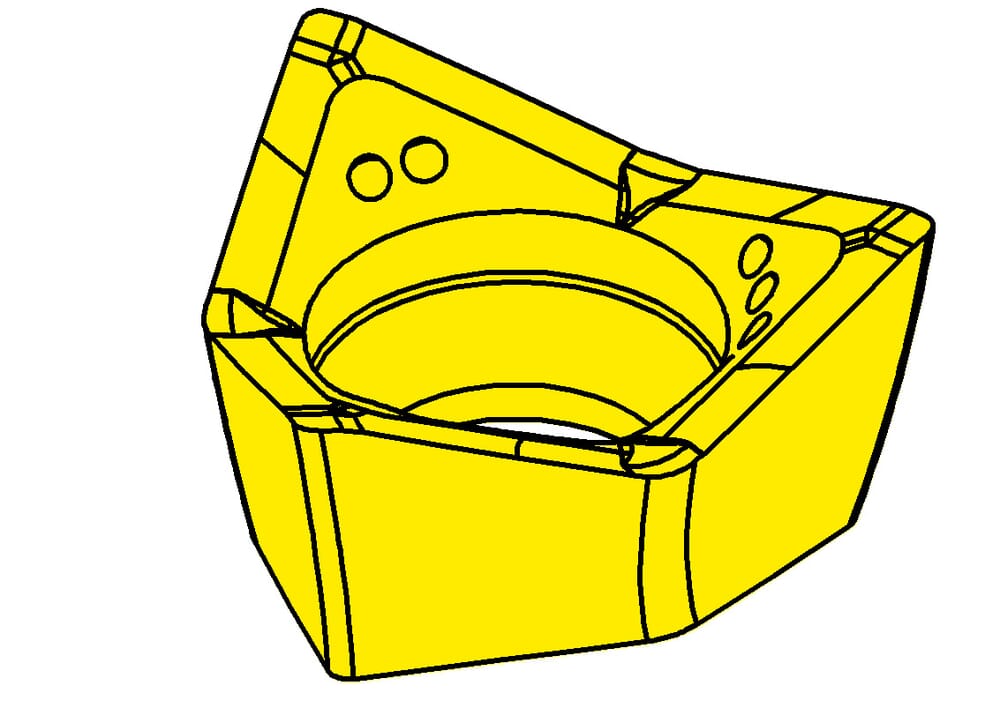

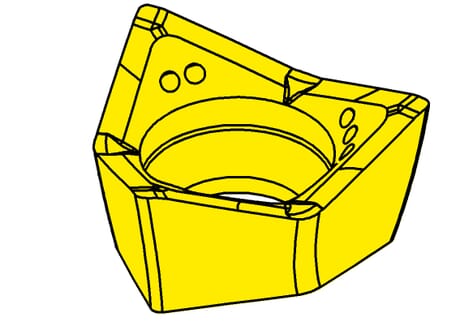

HORN DA Milling cutter DA31.016.A.04 TA45 for Milling

Width of groove (mm) (a)

0.118 ˝

3 mm

tool-application

rotating

For cutting diameter (Ds)

0.63 ˝

16 mm

Cutting insert height, Cutting insert thickness (h)

0.122 ˝

3.1 mm

Maximum stepover axial (ap) (ap)

0.118 ˝

3 mm

cutting-edge-diameter-met

0.63 ˝

16 mm

Corner radius (rx)

0.016 ˝

0.4 mm

Katalog_SSC

DA3116

Reduction BM40/BM32x30mm L=45mm

B124032045
