S66T.0300.15 IG65
Recommended:
Material number S66T030015IG65

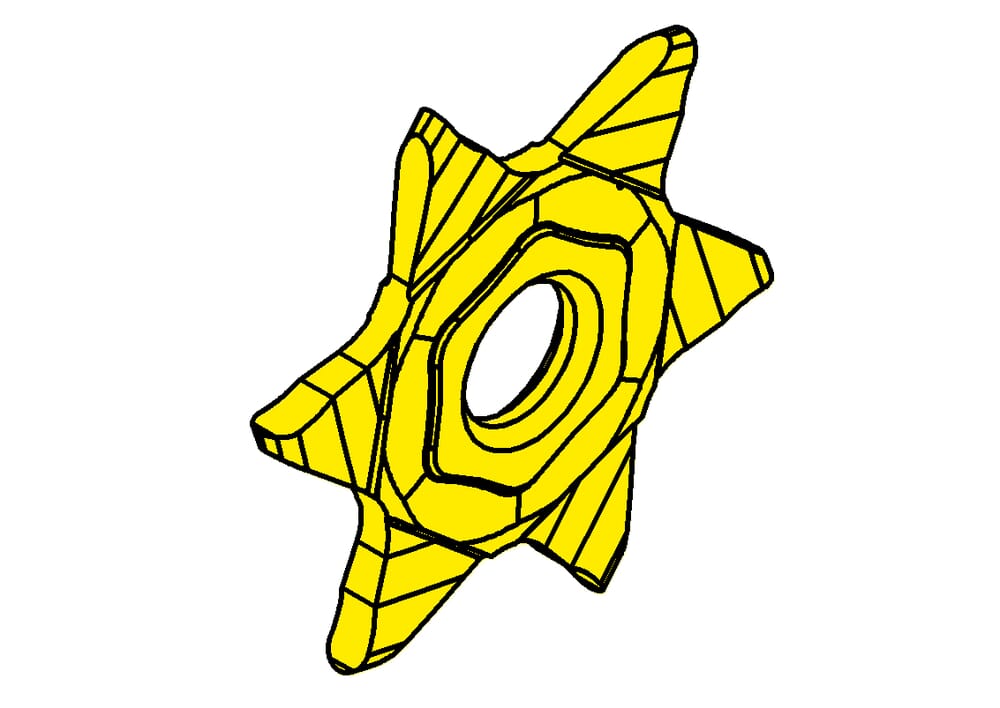

HORN Insert S66T.0300.15 IG65 for Turning
Cutting insert width (s)
0.126 ˝
3.2 mm
Width of groove (mm) (w)
0.118 ˝
3 mm
us-cutting
Yes
Katalog_SSC
66T02N
tool-application
static
Full radius (r)
0.059 ˝
1.5 mm
Cancellation (a1)
0.004 ˝
0.1 mm
| Downloads | |
|---|---|
| S66T_0300_15_IG65-DXF.DXF | Download |
| S66T_0300_15_IG65-STP.STP | Download |
| S66T_0300_15_IG65-ISO.XML | Download |
| S66T_0300_15_IG65-DIN.XML | Download |
| Download all files | |
