S117.1013.11.14.A1 AN45

Recommended:

Also suitable for:

Material number S11710131114A1AN45

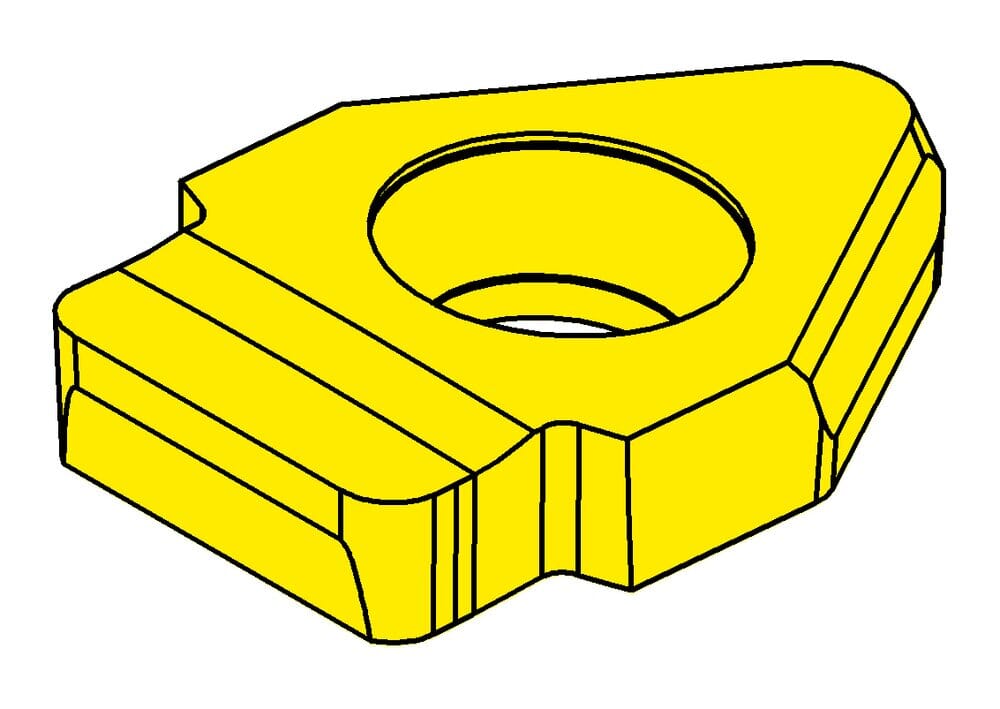

HORN 117 style broach insert - A1 geometry S117.1013.11.14.A1 AN45 for Broaching

Nominal range (Nw)

0.394 ˝

10 mm

us-cutting

Yes

tool-application

both

Smallest bore diameter (Dmin)

1.181 ˝

30 mm

Total length (l)

0.815 ˝

20.7 mm

Maximum depth of groove (tmax)

0.165 ˝

4.2 mm

Corner radius (r)

0.041 ˝

1.05 mm

Katalog_SSC

117C605

Cutting width (inch) (w)

0.399 ˝

10.13 mm

Cutting insert center from the middle (f)

0.441 ˝

11.2 mm
