S117.1003.03.14.B1 AN45

Material number S11710030314B1AN45

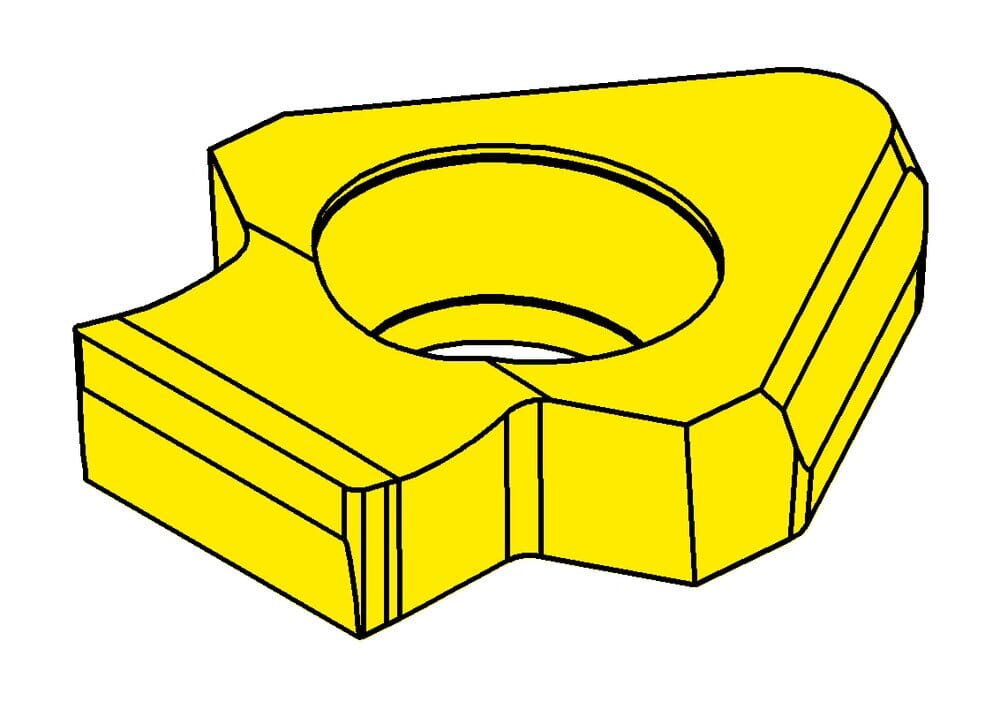

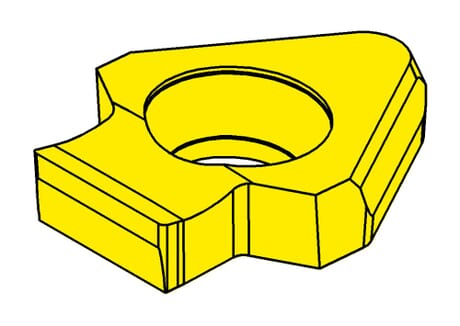

HORN 117 style broach insert - B1 geometry S117.1003.03.14.B1 AN45 for Broaching

Corner radius (r)

0.012 ˝

0.3 mm

tool-application

both

Smallest bore diameter (Dmin)

1.181 ˝

30 mm

Total length (l)

0.815 ˝

20.7 mm

Nominal range (Nw)

0.394 ˝

10 mm

Maximum depth of groove (tmax)

0.173 ˝

4.4 mm

Katalog_SSC

117C605

Cutting width (inch) (w)

0.395 ˝

10.03 mm

Cutting insert center from the middle (f)

0.441 ˝

11.2 mm

Inserts

264025010MG12
