S117.1000.03.14.A1 AN45

Recommended:

Also suitable for:

Material number S11710000314A1AN45

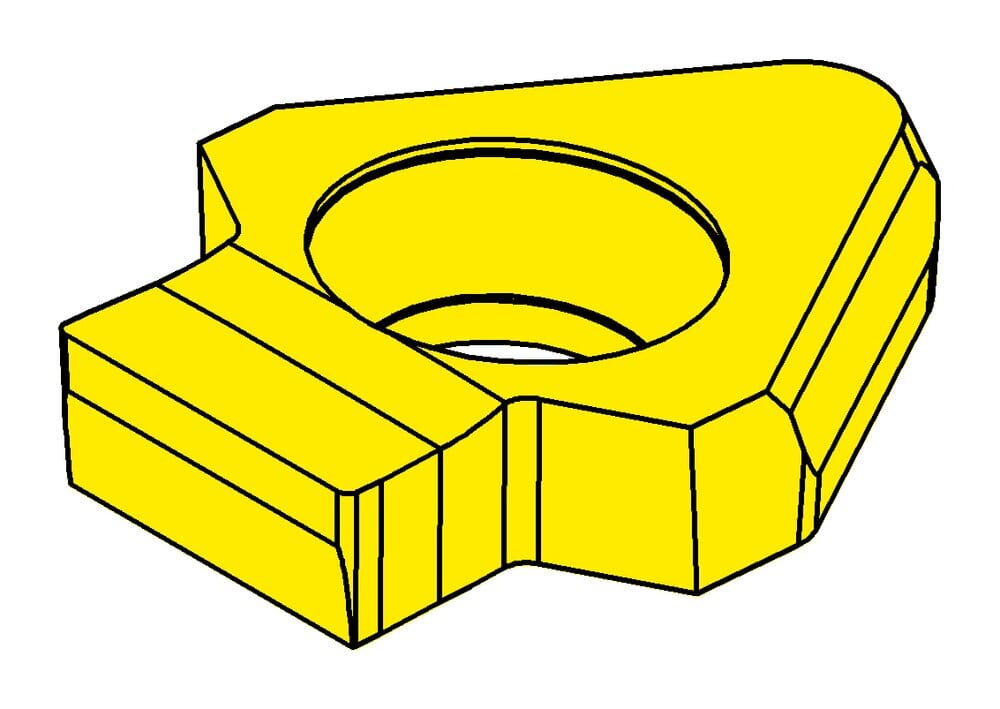

HORN 117 style broach insert - A1 geometry S117.1000.03.14.A1 AN45 for Broaching

Nominal range (Nw)

0.394 ˝

10 mm

us-cutting

Yes

tool-application

both

Smallest bore diameter (Dmin)

1.181 ˝

30 mm

Total length (l)

0.815 ˝

20.7 mm

Maximum depth of groove (tmax)

0.173 ˝

4.4 mm

Corner radius (r)

0.012 ˝

0.3 mm

Katalog_SSC

117C605

Cutting width (inch) (w)

0.394 ˝

10.01 mm

Cutting insert center from the middle (f)

0.441 ˝

11.2 mm

Inserts

229060031TN32
