S117.0514.05.06.A1 AN45
Recommended:
Also suitable for:
Material number S11705140506A1AN45

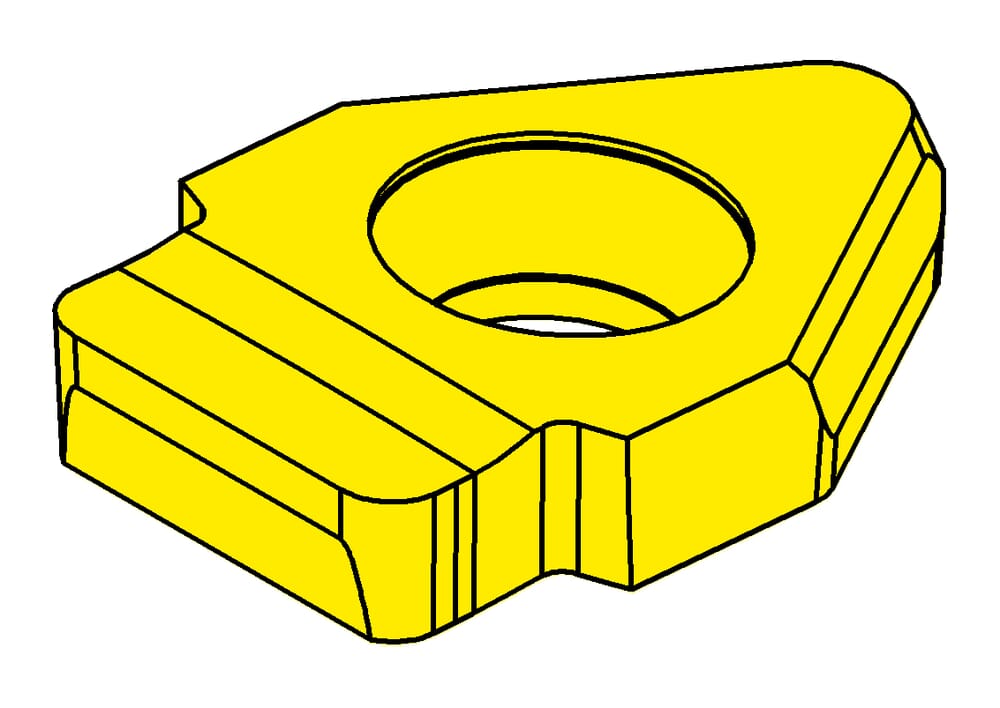

HORN insert S117.0514.05.06.A1 AN45 for Broaching
Katalog_SSC
117S605
us-cutting
Yes
Smallest bore diameter (Dmin)
0.394 ˝
10 mm
Total length (l)
0.276 ˝
7 mm
Nominal range (Nw)
0.197 ˝
5 mm
Corner radius (r)
0.02 ˝
0.5 mm
Cutting width (inch) (w)
0.202 ˝
5.137 mm
tool-application
both
Cutting insert center from the middle (f)
0.189 ˝
4.8 mm
Maximum depth of groove (tmax)
0.102 ˝
2.6 mm
