S117.0497.02.06.B1 AN45
Recommended:
Also suitable for:
Material number S11704970206B1AN45

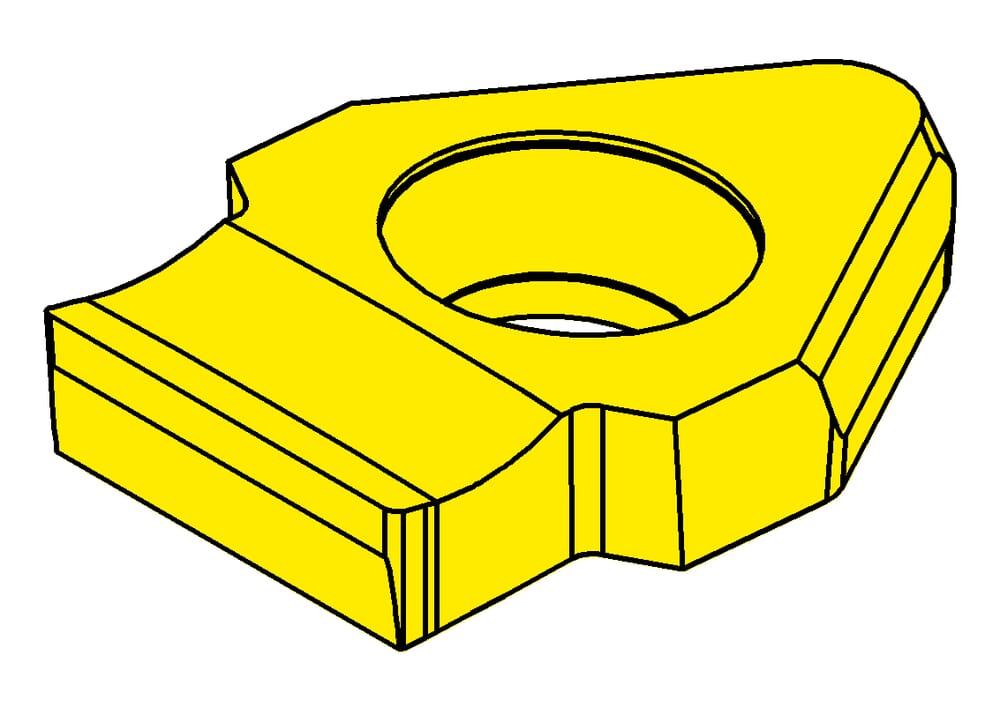

HORN insert S117.0497.02.06.B1 AN45 for Broaching
Smallest bore diameter (Dmin)
0.394 ˝
10 mm
Total length (l)
0.276 ˝
7 mm
Nominal range (Nw)
0.197 ˝
5 mm
Corner radius (r)
0.008 ˝
0.2 mm
us-cutting
Yes
Katalog_SSC
117S605
Cutting width (inch) (w)
0.196 ˝
4.98 mm
tool-application
both
Cutting insert center from the middle (f)
0.189 ˝
4.8 mm
Maximum depth of groove (tmax)
0.122 ˝
3.1 mm
| Downloads | |
|---|---|
| S117_0497_02_06_B1_AN45-DXF.DXF | Download |
| S117_0497_02_06_B1_AN45-STP.STP | Download |
| S117_0497_02_06_B1_AN45-ISO.XML | Download |
| S117_0497_02_06_B1_AN45-DIN.XML | Download |
| Download all files | |
