S117.0211.03.06.A1 AN45
Recommended:
Also suitable for:
Material number S11702110306A1AN45

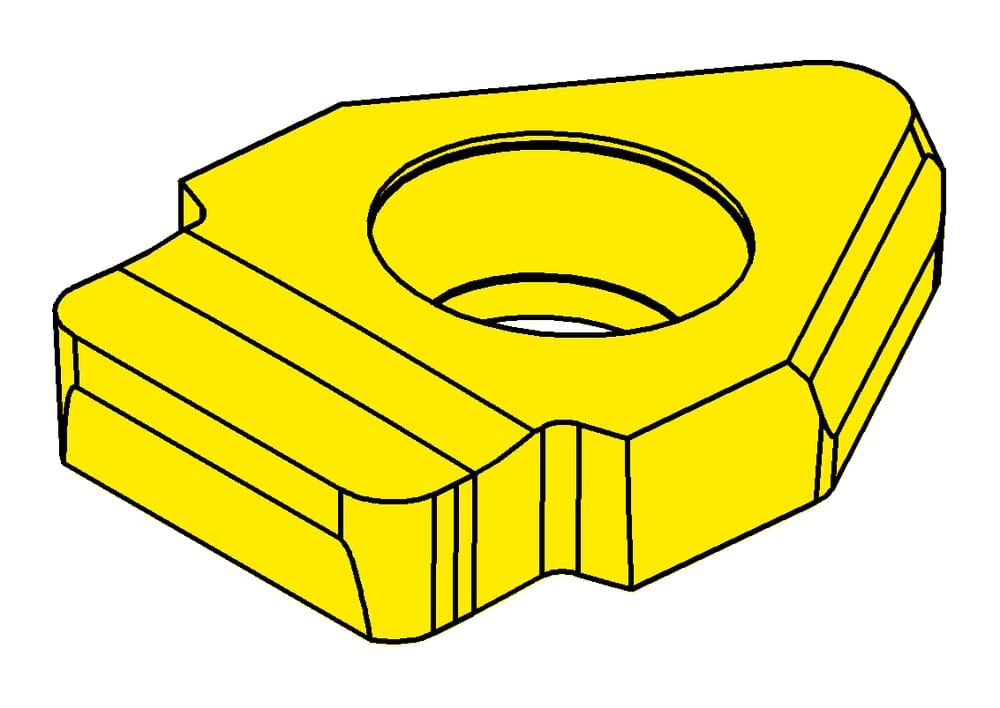

HORN insert S117.0211.03.06.A1 AN45 for Broaching
Katalog_SSC
117J605
us-cutting
Yes
Smallest bore diameter (Dmin)
0.354 ˝
9 mm
Total length (l)
0.244 ˝
6.2 mm
Nominal range (Nw)
0.079 ˝
2 mm
Corner radius (r)
0.014 ˝
0.35 mm
Cutting width (inch) (w)
0.083 ˝
2.115 mm
tool-application
both
Cutting insert center from the middle (f)
0.157 ˝
4 mm
Maximum depth of groove (tmax)
0.047 ˝
1.2 mm
| Downloads | |
|---|---|
| S117_0211_03_06_A1_AN45-STP.STP | Download |
| S117_0211_03_06_A1_AN45-ISO.XML | Download |
| S117_0211_03_06_A1_AN45-DIN.XML | Download |
| Download all files | |
