RU114.0046.08 TN35

Recommended:

Also suitable for:

Material number RU114004608TN35

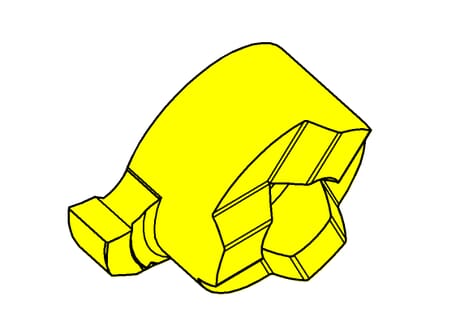

HORN Inserts RU114.0046.08 TN35 for Turning

Note: These inserts are optimized for finishing passes.

Smallest bore diameter (Dmin)

0.551 ˝

14 mm

machining-direction-sap

right

tool-application

static

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

us-cutting

Yes

unit-system-sap

Setting range radial (f)

0.354 ˝

9 mm

Maximum depth of groove (tmax)

0.157 ˝

4 mm

Head size (a)

0.531 ˝

13.5 mm

Corner radius (mm) (r)

0.008 ˝

0.2 mm

Katalog_SSC

114090R

Width of groove (w)

0.046 ˝

1.17 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm
