RU108.0031.00 IG35
Recommended:
Material number RU108003100IG35

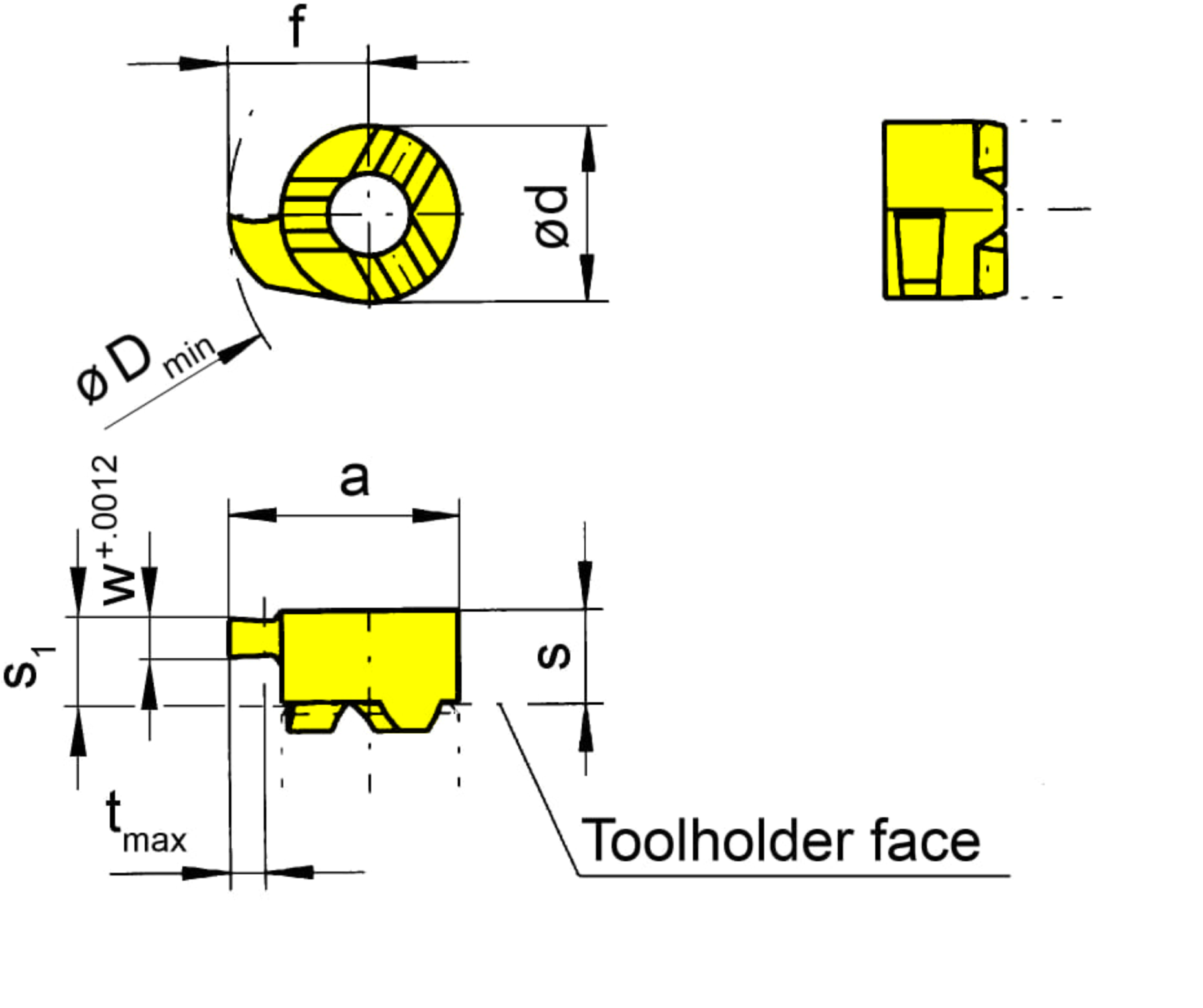

HORN Insert RU108.0031.00 IG35 for Turning
cutting-insert-thickness-to-cutting-edge-met
0.126 ˝
3.2 mm
machining-direction-sap
right
Smallest bore diameter (Dmin)
0.315 ˝
8 mm
Cutting insert height, Cutting insert thickness (s)
0.142 ˝
3.6 mm
Tooth diameter, head diameter (d)
0.236 ˝
6 mm
Setting range radial (f)
0.189 ˝
4.8 mm
Width of groove (mm) (w)
0.031 ˝
0.79 mm
Katalog_SSC
108060R
tool-application
static
Maximum depth of groove (tmax)
0.039 ˝
1 mm
Head size (a)
0.307 ˝
7.8 mm
cutting-edge-diameter-imp
0.378 ˝
9.6 mm
number-of-teeth
1 St.
