RU105.0894.1.8 IG35
Recommended:
Also suitable for:
Material number RU105089418IG35

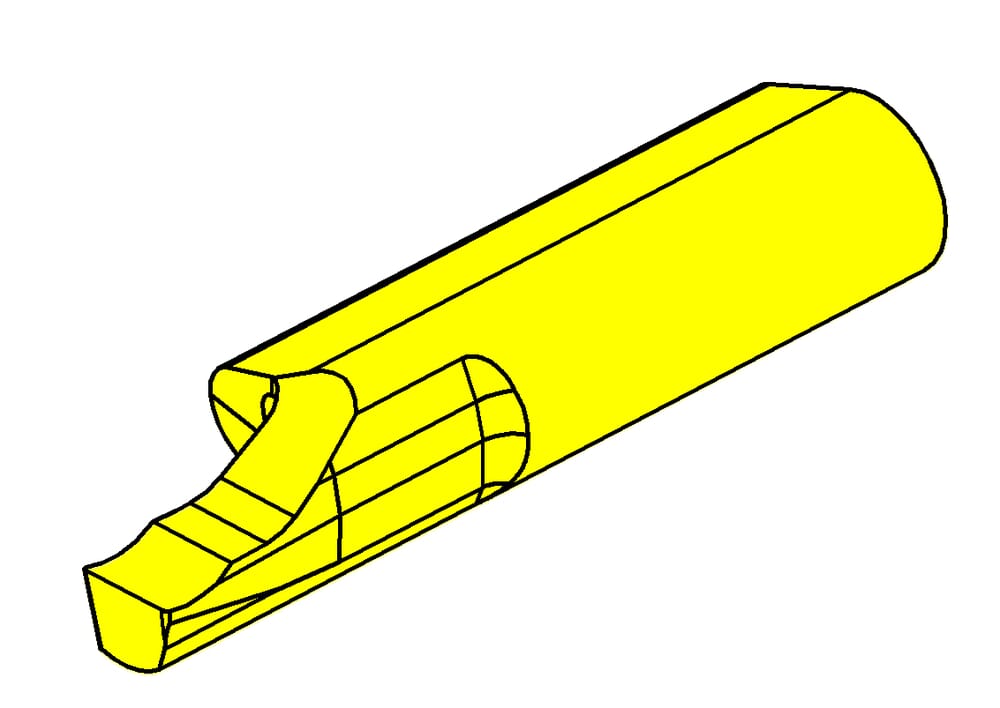

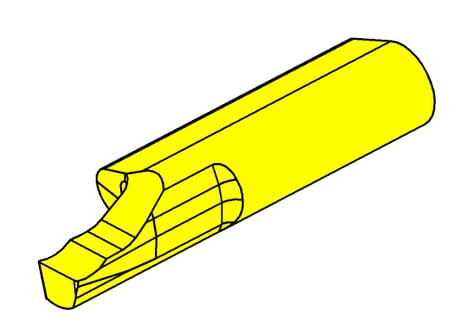

HORN Insert RU105.0894.1.8 IG35 for Turning
tool-application
static
cutting
1
machining-direction-sap
right
Total length (l5)
0.984 ˝
25 mm
Width of groove (mm) (w)
0.094 ˝
2.39 mm
Corner radius (r)
0.006 ˝
0.15 mm
Katalog_SSC
105125
tool-group-detail
U105
Smallest axial bore diameter (Da min)
0.315 ˝
8 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax a)
0.197 ˝
5 mm
Adjustment dimension cutting center (f)
0.079 ˝
2 mm
Neck length (l2)
0.394 ˝
10 mm
| Downloads | |
|---|---|
| RU105089418.DXF | Download |
| RU105089418_20230116_165053943.STP | Download |
| Download all files | |
