RU105.0812.1.8 IG35
Recommended:
Also suitable for:
Material number RU105081218IG35

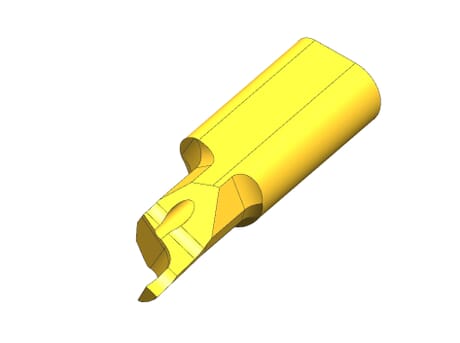

HORN Insert RU105.0812.1.8 IG35 for Turning
machining-direction-sap
right
Total length (l5)
0.984 ˝
25 mm
Width of groove (mm) (w)
0.125 ˝
3.18 mm
Corner radius (r)
0.006 ˝
0.15 mm
Katalog_SSC
105125
tool-group-detail
U105
tool-application
static
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax a)
0.236 ˝
6 mm
adjustment-dimension-imp
0.079 ˝
2 mm
Neck length (l2)
0.394 ˝
10 mm
| Downloads | |
|---|---|
| RU105081218.DXF | Download |
| RU105081218_20230116_164854003.STP | Download |
| Download all files | |
