RS274.0305.03 TH35
Recommended:
Also suitable for:
Material number RS274030503TH35

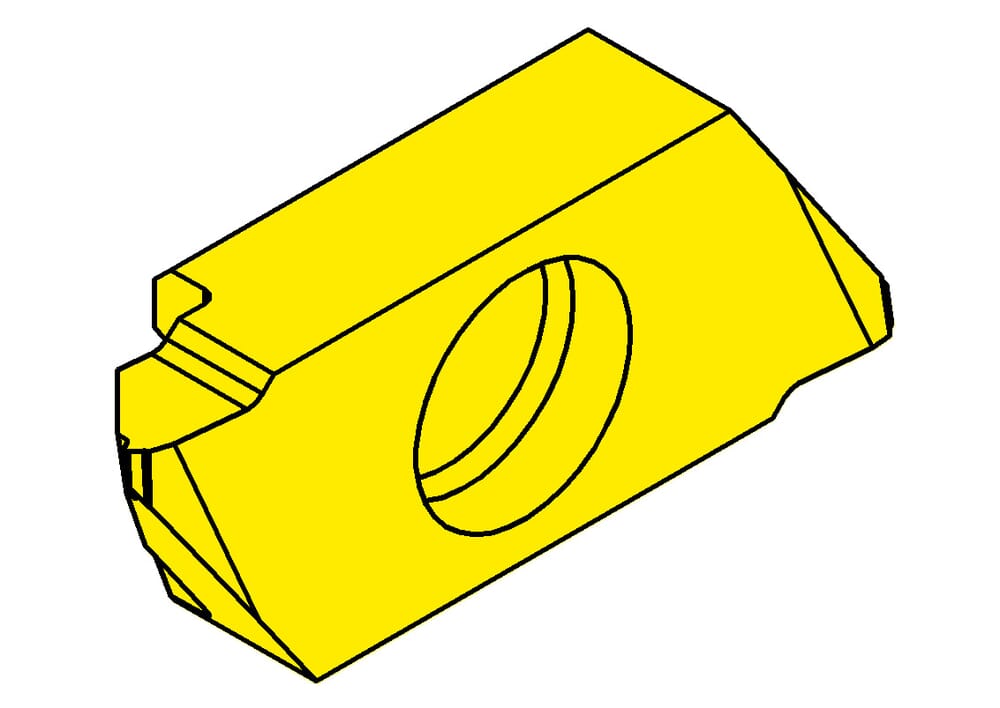

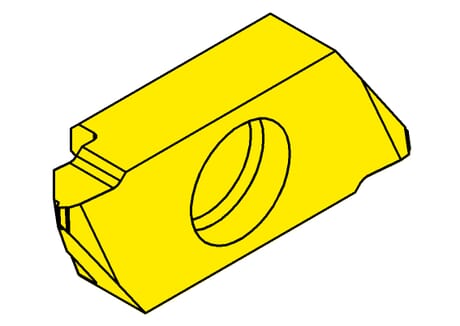

HORN Insert RS274.0305.03 TH35 for Gewinden
us-cutting
Yes
cutting
1
tool-application
static
machining-direction-sap
right
Top radius (r)
0.003 ˝
0.07 mm
Pitch (P)
0.02 ˝
0.5 mm
Setting length (E)
0.016 ˝
0.4 mm
Katalog_SSC
274040R
Profile, thread depth (h1)
0.012 ˝
0.31 mm
| Downloads | |
|---|---|
| RS274_0305_03_TH35-DXF.DXF | Download |
| RS274_0305_03_TH35-STP.STP | Download |
| RS274_0305_03_TH35-ISO.XML | Download |
| RS274_0305_03_TH35-DIN.XML | Download |
| Download all files | |
