RS274.0150.P0.E IG35
Recommended:
Material number RS2740150P0EIG35

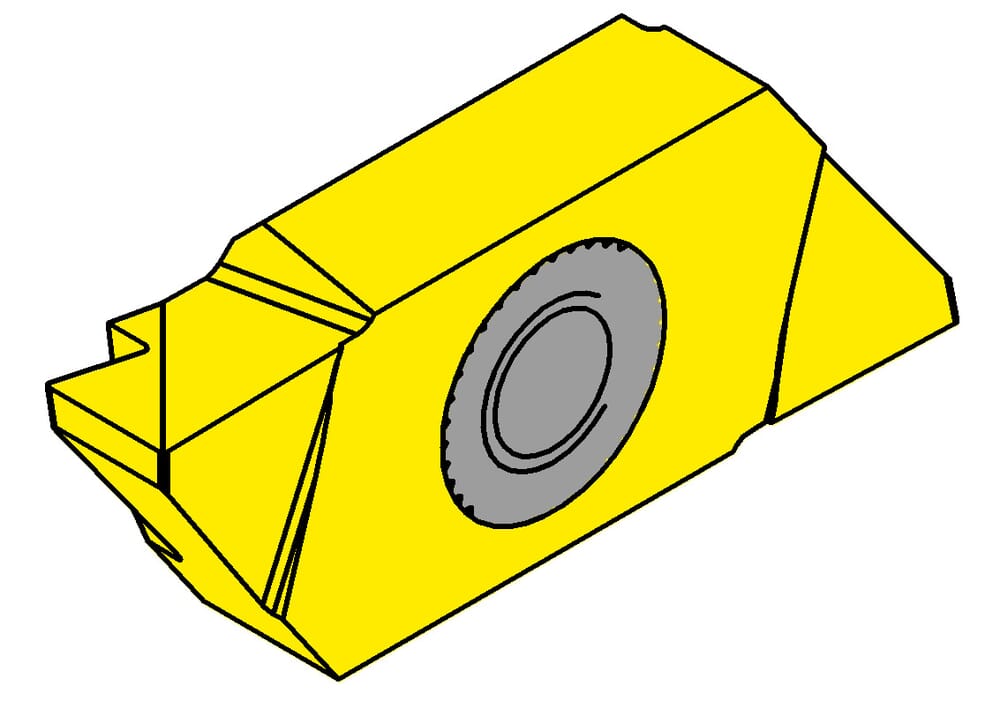

HORN Insert RS274.0150.P0.E IG35 for Turning
us-cutting
Yes
machining-direction-sap
right
tool-application
static
Maximum depth of groove (tmax)
0.089 ˝
2.25 mm
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Corner radius (r)
0.002 ˝
0.05 mm
Katalog_SSC
274140R
| Downloads | |
|---|---|
| RS274_0150_P0_E_IG35-DIN.XML | Download |
| RS274_0150_P0_E_IG35-DXF.DXF | Download |
| RS274_0150_P0_E_IG35-STP.STP | Download |
| RS274_0150_P0_E_IG35-ISO.XML | Download |
| Download all files | |
