RS271.0015.D.SF.L ES15
Recommended:
Also suitable for:
Material number RS2710015DSFLES15

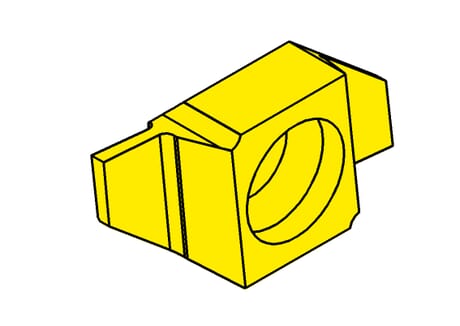

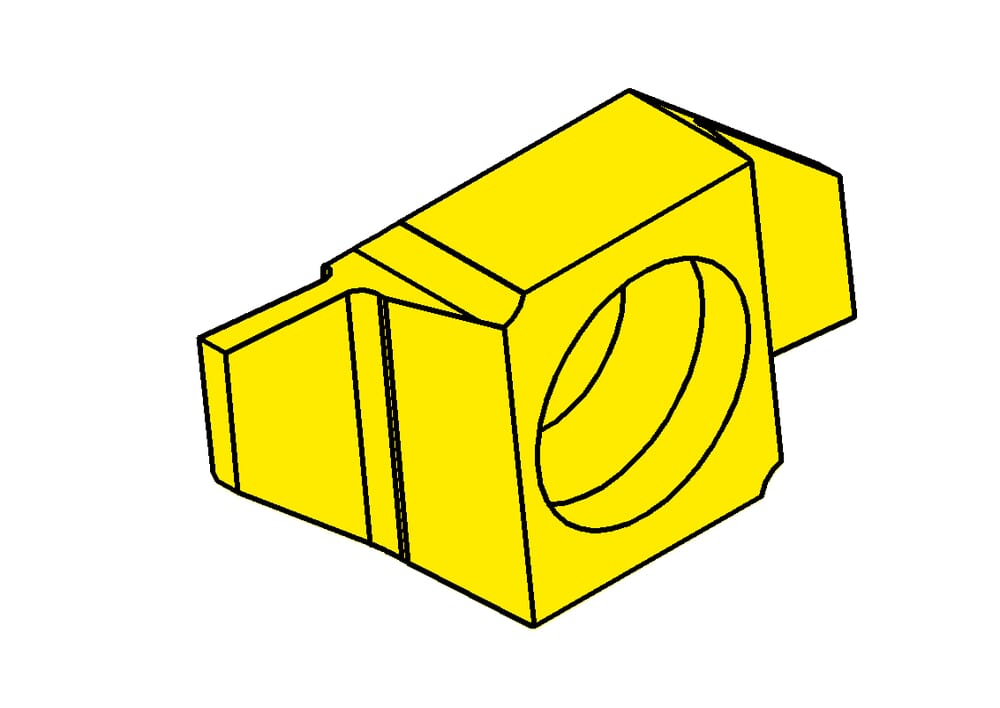

HORN Indexable insert RS271.0015.D.SF.L ES15 for Turning
Width of groove (w)
0.059 ˝
1.5 mm
us-cutting
Yes
tool-application
static
Setting length (f)
0.24 ˝
6.1 mm
machining-direction-sap
right
Katalog_SSC
271041
Maximum depth of groove (tmax)
0.091 ˝
2.3 mm
| Downloads | |
|---|---|
| RS271_0015_D_SF_L_ES15-DXF.DXF | Download |
| RS271_0015_D_SF_L_ES15-STP.STP | Download |
| RS271_0015_D_SF_L_ES15-ISO.XML | Download |
| RS271_0015_D_SF_L_ES15-DIN.XML | Download |
| Download all files | |
