RS105.1833.2.6.U20 IG35

Material number RS105183326U20IG35

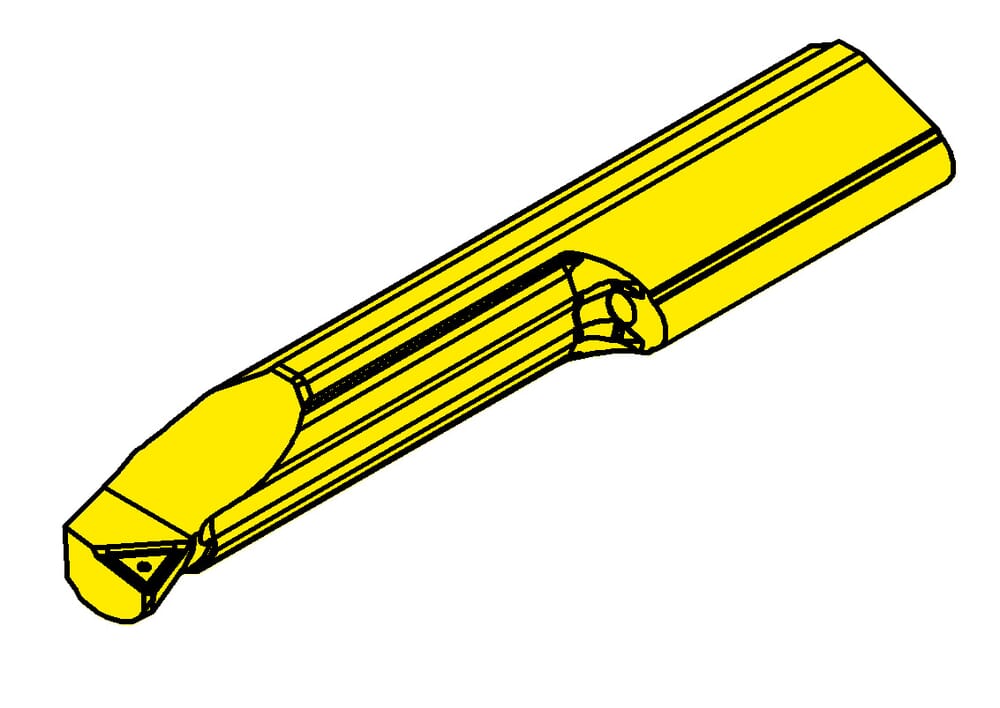

HORN Supermini Insert with Sintered Chipbreaker, 6mm min bore RS105.1833.2.6.U20 IG35 for Turning

Top radius (r)

0.008 ˝

0.2 mm

Smallest bore diameter (Dmin)

0.236 ˝

6 mm

Total length (l5)

1.181 ˝

30 mm

Setting range radial (f)

0.13 ˝

3.3 mm

Neck diameter (d)

0.173 ˝

4.4 mm

machining-direction-sap

right

Katalog_SSC

105125

tool-application

static

Width of blank (b)

0.276 ˝

7 mm

Maximum depth of groove (tmax)

0.02 ˝

0.5 mm

Head size (a)

0.22 ˝

5.6 mm

Neck length (l2)

0.591 ˝

15 mm
