RS105.1515.4.6.GM1 TH35
Recommended:
Also suitable for:
Material number RS105151546GM1TH35

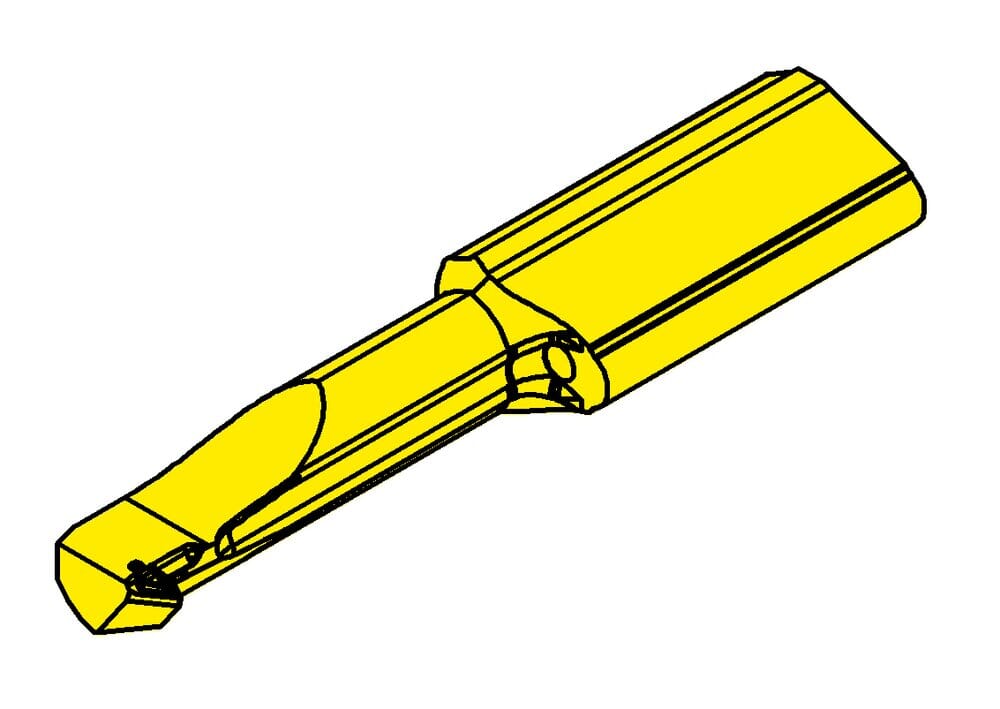

HORN Insert RS105.1515.4.6.GM1 TH35 for Gewinden
Maximum pitch (Pmax)
0.059 ˝
1.5 mm
Smallest bore diameter (Dmin)
0.268 ˝
6.8 mm
Pitch (P)
0.059 ˝
1.5 mm
Neck diameter (d)
0.174 ˝
4.43 mm
Setting range radial (f)
0.13 ˝
3.3 mm
Setting length (E)
0.031 ˝
0.8 mm
us-cutting
Yes
Width of blank (b)
0.276 ˝
7 mm
Neck length (l2)
0.984 ˝
25 mm
Cutting insert total length (l5)
1.575 ˝
40 mm
tool-application
static
Katalog_SSC
105125
machining-direction-sap
right
| Downloads | |
|---|---|
| RS105_1515_4_6_GM1_TH35-DIN.XML | Download |
| RS105_1515_4_6_GM1_TH35-DXF.DXF | Download |
| RS105_1515_4_6_GM1_TH35-STP.STP | Download |
| RS105_1515_4_6_GM1_TH35-ISO.XML | Download |
| Download all files | |
