RS105.0507.3.5.GM1 TH35
Material number RS105050735GM1TH35

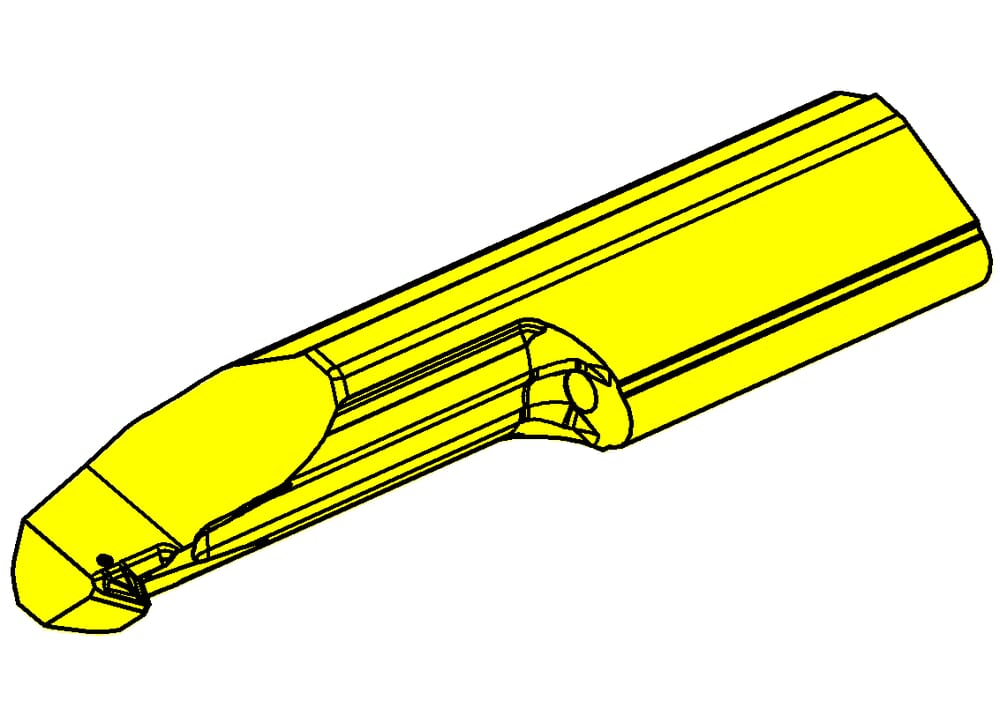

HORN Insert RS105.0507.3.5.GM1 TH35 for Gewinden

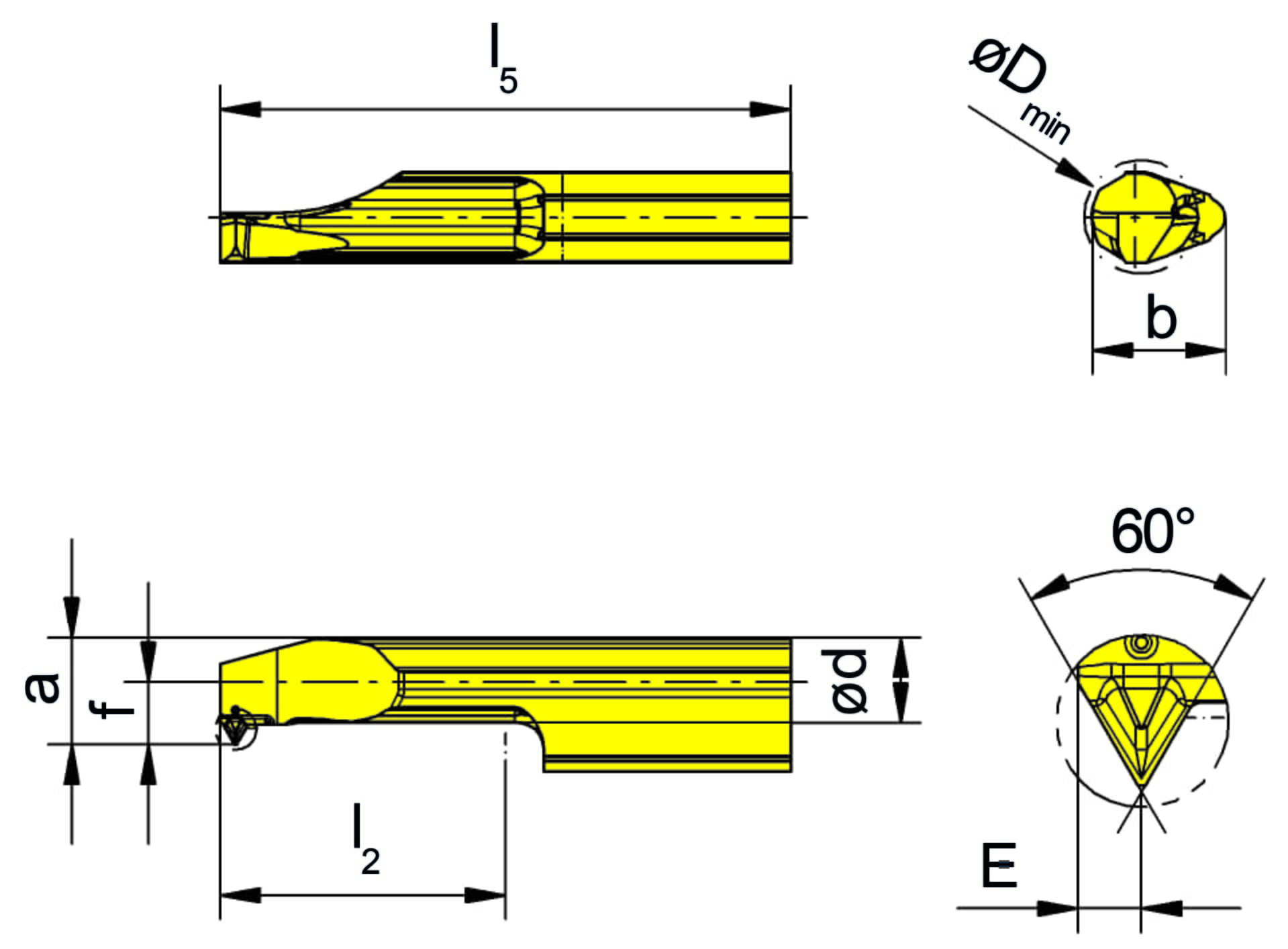

Setting length (E)
0.031 ˝
0.8 mm
Katalog_SSC
105125
tool-application
static
machining-direction-sap
right
Maximum pitch (Pmax)
0.03 ˝
0.75 mm
Pitch (P)
0.02 ˝
0.5 mm
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
cutting-insert-width-imp
0.185 ˝
4.7 mm
Setting range radial (f)
0.13 ˝
3.3 mm
Neck diameter (d)
0.146 ˝
3.7 mm
Width of blank (b)
0.276 ˝
7 mm
Cutting insert total length (l5)
1.378 ˝
35 mm
Neck length (l2)
0.787 ˝
20 mm
